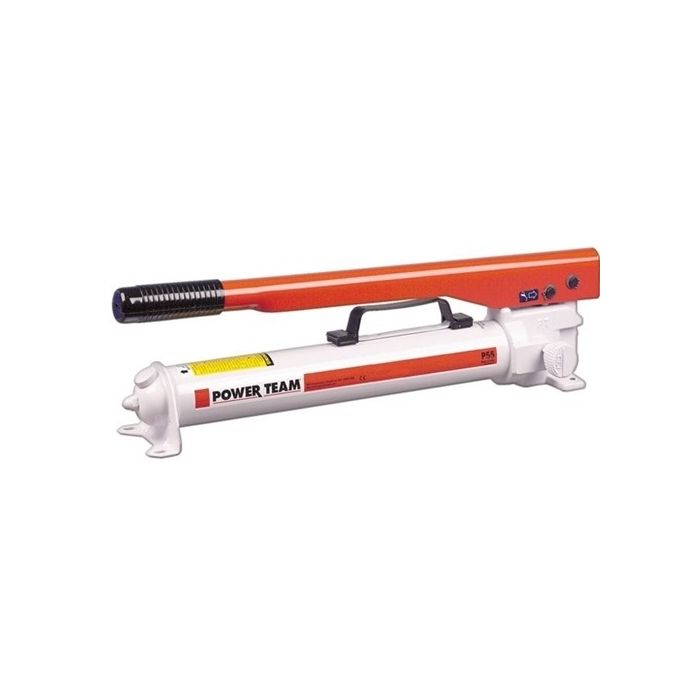

SPX 1-SPEED HAND PUMP .160 CU IN/STROKE
In stock
Only 1 left
Item Number
P55
Power Team hand pumps, with the angled fill port, have a built in "relief valve" protection system. This system is designed to protect over-pressurization of the reservoir from sudden back pressure. This system also works as a seal to prevent oil leaks.
Features
- All metal construction won't burn through in welding environments.
- Formed metal handle provides less flex and reduces operator fatigue.
- Convenient fill port on P23 and P55 allows pumps to be filled in a horizontal or vertical position.
- Fill cap seal acts as safety valve preventing over-pressurizing of reservoir.
- Relief valve inboard of check valve prevents loads from drifting down.
- Large valve knob gives added control for slowly metering loads down.
Specifications
- Pump type: Single Speed
- Handle angle: 38°
- Use with ram type: Single Acting Cylinder
- Handle effort: 145.00 lb
- Oil capacity: 55.000 in³
- Overall length: 23.000 in
- Usable oil capacity: 45.000 in³
- Overall width: 4.750 in
- Maximum operating pressure:10000 psi
- Overall height: 6.250 in
- Volume per stroke at high pressure: 0.160 in³
- Weight: 15.80 lb
- Valve type: 2-Way
- Oil port size: 3/8 NPTF
| Item Number | P55 |
|---|---|
| Weight | 50.000000 |
| Vendor Part Number | P55 |
