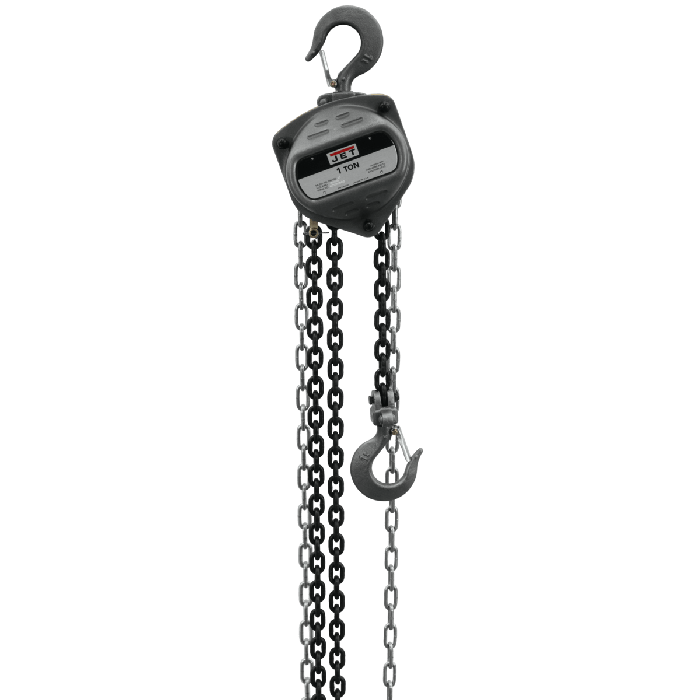

JET 1 TON HAND CHAIN HOIST W/20' LIFT S90-100-20
In stock
Only 2 left
Item Number
101912
JET® S90 Series Hand Chain Hoists were designed with all steel construction and ensure reliability and durability to perform in light-duty industrial applications. Easily maintained and serviced, the JET® S90 is available in capacities from ½ ton to 10 ton and standard lifts of 10, 15, 20, and 30 feet (custom lifts available). The JET® S90 is the ideal contractor grade hoist.
Features
- Grade 80 black oxide coated load chain for added durability
- Heat Treated Load Plates
- Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
- Intended for the harshest environments, the heat treated load plates and case hardened corrosive resistant internal parts extend the life of the hoist
- Needle bearings support the load sheave to increase efficiency and promote smooth operation
- Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
- The smaller body and lightweight design are ideal for confined areas and low headroom applications
- The Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety
Specifications
- Stock Number 101912
- Hand Chain To Lift Load 1 ft. 53
- Capacity (Lbs.) 2200
- Lift (Ft.) 20
- Load Capacity (Tons) 1
- Load Chain Dimensions dia/mm) 6 x 18
- Prop 65 Cancer and Reproductive Harm
- Weight (Lbs.) 47
- Lbs. of Pull to Lift Capacity 60.0000
- Headroom (In.) 11
| Item Number | 101912 |
|---|---|
| Weight | 40.000000 |
| Vendor Part Number | JT9-101912 |
