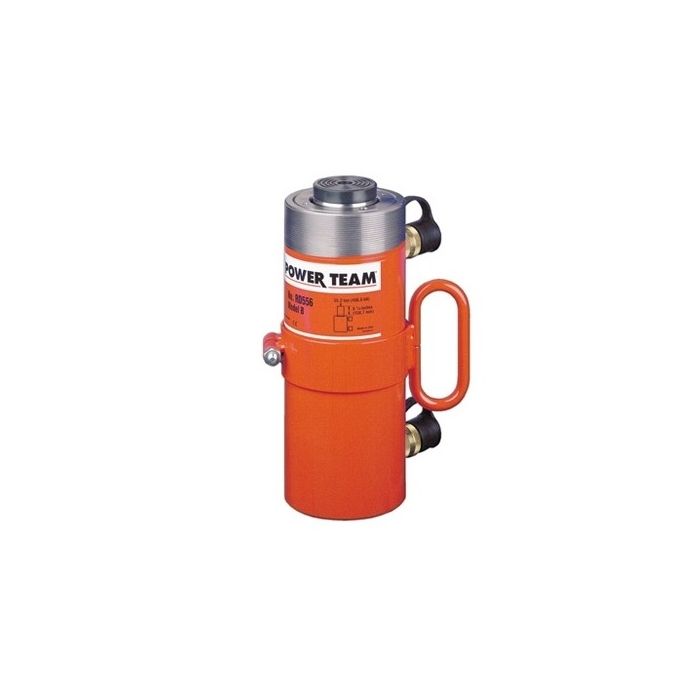

SPX 100 TON CYLINDER 13-1/8" STROKE

Features

• High-tonnage premium design, high cycle cylinder for bridge lifting, ship building and mining applications with built in safety relief preventing over pressurization when retracting
• Perfect for bridge lifting, building reconstruction, shipyard, utility and mining equipment maintenance
• Aluminum bronze overlay bearings provide long life, chrome plated piston rod resists corrosion
• Load cap snaps out to expose internal piston rod threads for pulling applications; threads withstand full tonnage
• Grooved ring pattern in load cap helps guard against load slippage
• Each cylinder has two 9796 3/8" NPTF female half couplers
• Built-in safety relief valve prevents over-pressurization of the retract circuit
• Feature mounting holes and collar threads

Specifications

• Cyl. Cap. (tons) Push: 100
• Cyl. Cap. (tons) Pull: 44
• Stroke (in.): 13 1/8
• Oil Capacity (cu.in) Push: 270.7
• Oil Capacity (cu.in) Pull: 116
• Load Cap Dia. (in.): 3 7/8
• Bore Dia. (in.): 5 1/8
• Cyl. Eff. Area (sq.in.) Push: 20.63
• Cyl. Eff. Area (sq.in.) Pull: 8.84
• Int. Press. at Cap. (psi) Push: 9,695
• Int. Press. at Cap. (psi) Pull: 9,959
• Tons at 10,000 psi Push: 103.1
• Tons at 10,000 psi Pull: 44.2
• Weight (lbs.): 181
• Ret. Height (in.): 20- 9/32
• Ext. Height (in.): 33 13/32
• Outside Dia. (in.): 6 7/8
• Collar Thread Size (in.): 6 7/8-12
• Thread Length Thread (in.): 1 5/8
• Base to Port trusion (in.): 1 1/2
• Cylinder Piston Top to Port (in.): 2 1/2
• Piston Rod Dia. Depth (in.): 3 7/8
• Rod Int. and (in.): 2 3/4-12x1 5/32
• Piston Rod Protrusion (in.): 5/8
