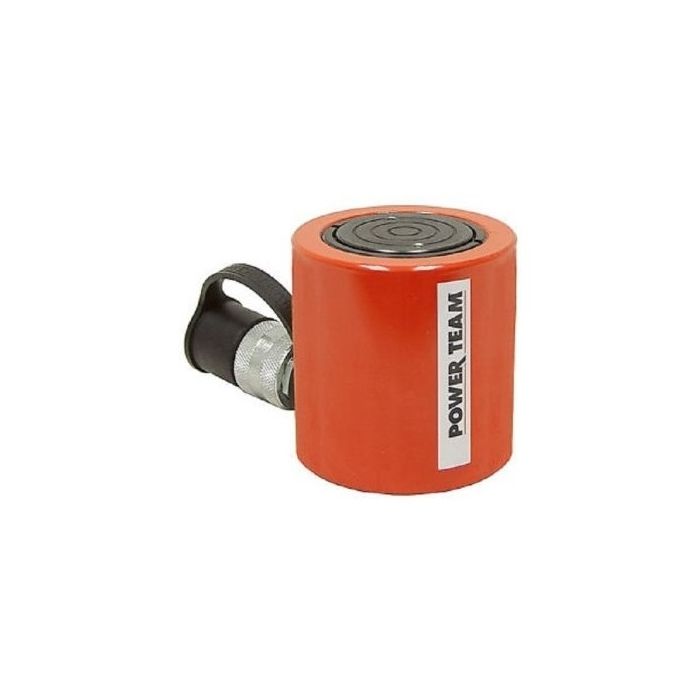

SPX 10 TON CYLINDER 1-1/2" STROKE
In stock
Only 1 left
Item Number
RSS101
Power Tech plated piston rods and gland nuts resist scoring and corrosion. Heavy duty return spring (except for double-acting models) provides fast piston return & low collapsed height. Coupler on 10 thru 50-ton models is angled upward 5° for added clearance. Grooved piston top keeps load from sliding. Cylinders can be “dead-ended” at full capacity. Removable carrying handles on 100 ton and 250-ton models.
Specifications
- Cyl Cap. (tons): 10
- Stroke (in.): 1-1/2
- Oil Cap. (cu. in.) Push: 3.4
- Bore Dia. (in.): 1-11/16
- Cylinder Effective Area (sq. in.) Push: 2.24
- Internal Press at Cap. (psi) Push: 8,943
- Tons at 10000 (psi) Push: 11.2
- Weight (lbs.): 6
- A: Retracted Height (in.): 3-1/2
- B: Extended Height (in.): 5
- C: Outside Dia. (in.): 2-3/4
- F: Base to Port (in.): 5/8
- H: Piston Rod Dia. (in.): 1-1/2
| Item Number | RSS101 |
|---|---|
| Weight | 10.000000 |
| Vendor Part Number | RSS101 |
