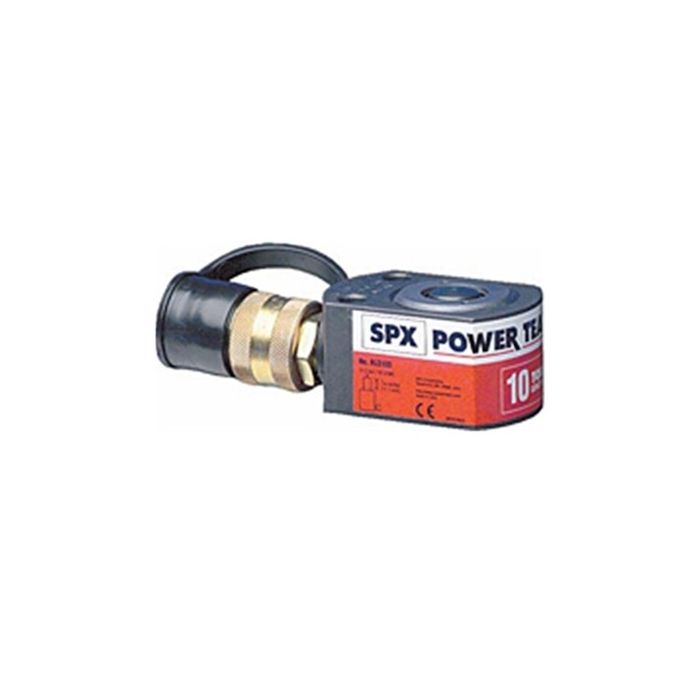

SPX 10 TON CYLINDER 7/16" STROKE

Features

• Low profile cylinder ideal for confined areas with heavy-duty return spring for faster retraction
• Cylinder body, piston and gland nut "Power Tech" treated for corrosion and abrasion resistance
• Standard domed piston rod (5-30 ton) or swivel cap (50- 150 ton) minimize effects of off-center loading
• Unique heavy duty spring provides fast piston return
• A 9796 3/8" NPTF female half coupler is standard with each cylinder (the RLS50 has a 3/8" coupler which is not angled)
• Oil ports are 3/8" NPTF
• Couplers on all cylinders, except RLS50, are angled upward for extra clearance

Specifications

• Stroke Length (in): 0.438
• Piston Rod Diameter (in): 0.750
• Series / Type: RLS-Series / Low Profile
• Actuation / Return: Single-Acting / Spring Return
• Cylinder Capacity (in): 10
• Oil Capacity (in): 1.00
• Retracted Height (in): 1.750
• Extended Height (in): 2.188
• Effective Area (in): 2.236
• Tons at 10000 psi: 11.18
• Max Pressure: 10,000
• Bore Size (in):1.688
• Base to Port (in): 0.625
• Dimensions (in): 2.188 x 3.250
• Cylinder Material: Steel
• Weight (lbs): 3.30
