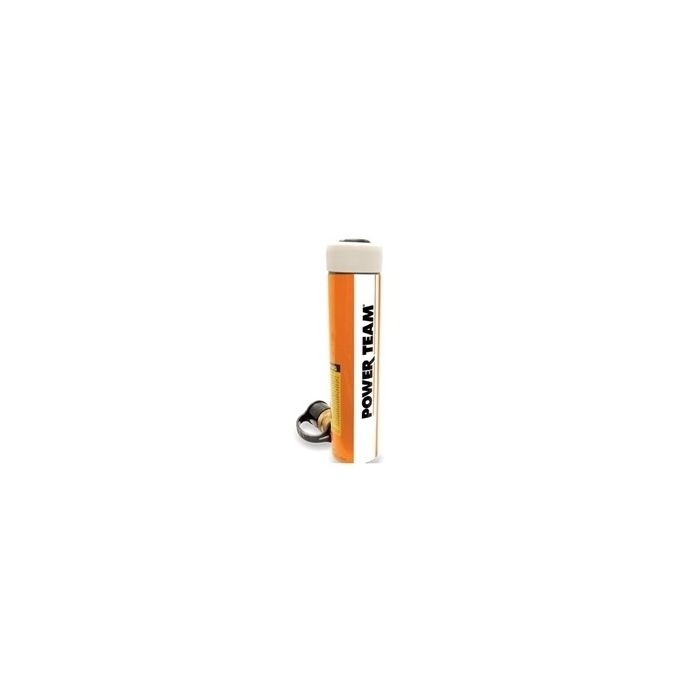

SPX 10 TON 1" STROKE CYLINDER
In stock
Only 2 left
Item Number
C101C
Aluminum bronze bearing reduces wear caused by off-center loads. Maximum sized springs speed piston return and increase spring life. Wide range of accessories available to thread onto piston rod, collar, or onto cylinder base. Single-Acting, Spring-Return. Rugged and high quality general purpose cylinder used for lifting and pressing.
Specifications
- Cylinder Cap tons: 10
- Stroke (in): 1
- Oil cap (cu. in): 2.2
- Bore Diameter (in): 1-11/16
- Cylinder Effective Area (sq. in): 2.236
- Internal Press at cap (psi): 8,948
- Tons at 10,000 (psi): 11.2
- Weight (lbs): 4
- Retracted Height (in): 3-5/8
- Extended Height (in): 4-5/8
- Outside Diameter (in): 2-1/4
- Collar Thread (in): 2-1/4-14
- Piston Collar Thread Length (in): 1-1/8
- Base to Port (in): 3/4
- Piston Rod Diameter (in): 1-1/2
- Piston Int. Thread and Depth (in): 1-8 x 3/4
- Rod Protrusion (in): 1/4
| Item Number | C101C |
|---|---|
| Weight | 115.000000 |
| Vendor Part Number | C101C |
