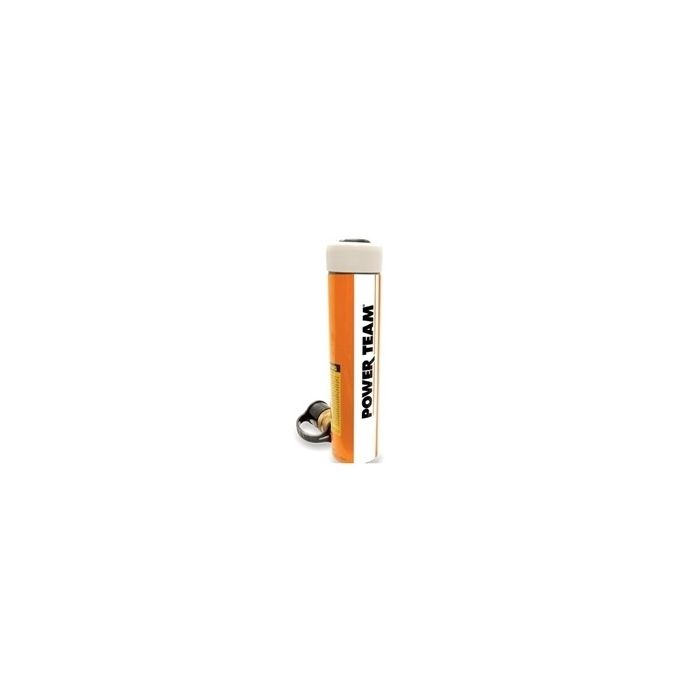

SPX 10 TON 12-1/8" STROKE CYLINDER
Pre Order Today
Item Number
C1012C
Aluminum bronze bearing reduces wear caused by off-center loads. Maximum sized springs speed piston return and increase spring life. Wide range of accessories available to thread onto piston rod, collar, or onto cylinder base. Single-Acting, Spring-Return. Rugged and high quality general purpose cylinder used for lifting and pressing.
Specifications
- Cylinder Cap tons: 10
- Stroke (in): 12-1/8
- Oil cap (cu. in): 27.1
- Bore Diameter (in): 1-11/16
- Cylinder Effective Area (sq. in): 2.236
- Internal Press at cap (psi): 8,948
- Tons at 10,000 (psi): 11.2
- Weight (lbs): 14.6
- Retracted Height (in): 15-3/4
- Extended Height (in): 27-7/8
- Outside Diameter (in): 2-1/4
- Collar Thread (in): 2-1/4-14
- Piston Collar Thread Length (in): 1-1/8
- Base to Port (in): 3/4
- Piston Rod Diameter (in): 1-1/2
- Piston Int. Thread and Depth (in): 1-8 x 3/4
- Rod Protrusion (in): 1/4
| Item Number | C1012C |
|---|---|
| Weight | 115.000000 |
