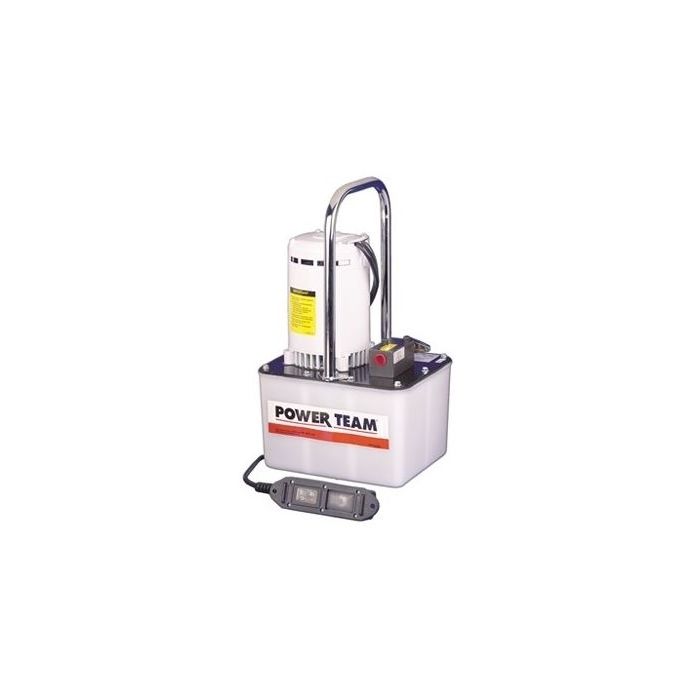

SPX 2-SPEED ELECTRIC HYDRAULIC PUMP E17 CU IN/MIN, 110/115V, 50/60 HZ
Pre Order Today
Item Number
PE172
For maintenance and construction applications, up to 55 tons. For use with single-acting or double-acting cylinders at operating pressures to 10,000 psi. For intermittent duty; starts under full load.
Features
- Equipped with 1/2 hp, 3450 rpm, single-phase, thermal protected induction motor; 10 ft remote control cord
- Low amperage draw; small generators and low amperage circuits can be used as power source
- Extremely quiet noise level (67-81 dBA)
Specifications
- Pump type: Electric 2-Speed Pump
- Usable oil capacity: 295.0 in³
- For use with: Single-Acting Cylinders
- Reservoir material: Thermoplastic
- Power rating: 1/2 hp
- Typical flow at max psi: 16 in³/min
- Voltage: 110/115 V
- Typical flow at 10000 psi: 16 in³/min
- Frequency: 50/60 Hz
- Typical flow at 5000 psi: 20 in³/min
- Amperage: 10.0 A
- Typical flow at 100 psi: 190 in³/min
- Motor phase: 1 ph
- Typical flow at 0 psi: 290 in³/min
- Max rpm: 3450 rpm
- Maximum pressure: 10000 psi
- Sound level at idle/10000 psi: 64/81 dBA
- Valve type: 2-Way, 2-Position Manual Valve
- Overall length: 11.375 in
- Valve type/function: 2-Way, 2-Position / Advance Hold Retract (Auto)
- Overall width: 9.250 in
- Valve function details: Cylinder piston “advance”, “hold” and “retract”.
- Overall height: 18.500 in
- Control switch: Remote Motor Control (10 ft) On/Off
- Weight: 57.00 lbs
- Reservoir capacity: 2.00 gal
- Reservoir capacity (cubic inches): 462 in³
| Item Number | PE172 |
|---|---|
| Weight | 50.000000 |
| Vendor Part Number | PE172 |
