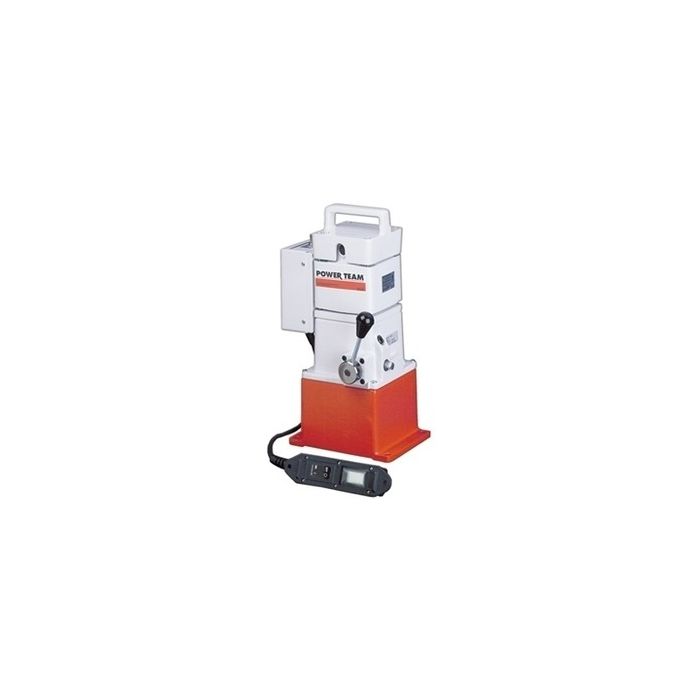

SPX ELECTRIC PUMP 110/115VAC
Pre Order Today
Item Number
PE182
For maintenance and construction applications, up to 55 tons. For use with single-acting or double-acting cylinders at operating pressures to 10,000 psi. For intermittent duty; starts under full load.
Specifications
- Pump type: Electric 2-Speed Pump
- Usable oil capacity: 104.0 in³
- For use with: Single-Acting Cylinders
- Power rating: 1/2 hp
- Typical flow at max psi: 18 in³/min
- Voltage: 110/115 V
- Typical flow at 10000 psi: 18 in³/min
- Frequency: 50/60 Hz
- Typical flow at 5000 psi: 20\5 in³/min
- Amperage: 10.0 A
- Typical flow at 100 psi: 190 in³/min
- Motor phase: 1 ph
- Typical flow at 0 psi: 230 in³/min
- Max rpm: 12000 rpm
- Maximum pressure: 10000 psi
- Sound level at idle/10000 psi: 85/90 dBA
- Valve type: 2-Way
- Overall length: 8 in
- Valve type/function: 4-Way / Advanced Return
- Overall width: 6 in
- Valve function details: Holds when motor is shut off and valve is in advanced position
- Overall height: 16 in
- Control switch: Remote Motor Control (10ft) on/off
- Weight: 30 lbs
- Reservoir capacity: 0.5 gal
- Reservoir capacity (cubic inches): 115.5 in³
| Item Number | PE182 |
|---|---|
| Weight | 50.000000 |
