SPX ELECTRIC PUMP 110/115VAC
Pre Order Today
Item Number
PE552

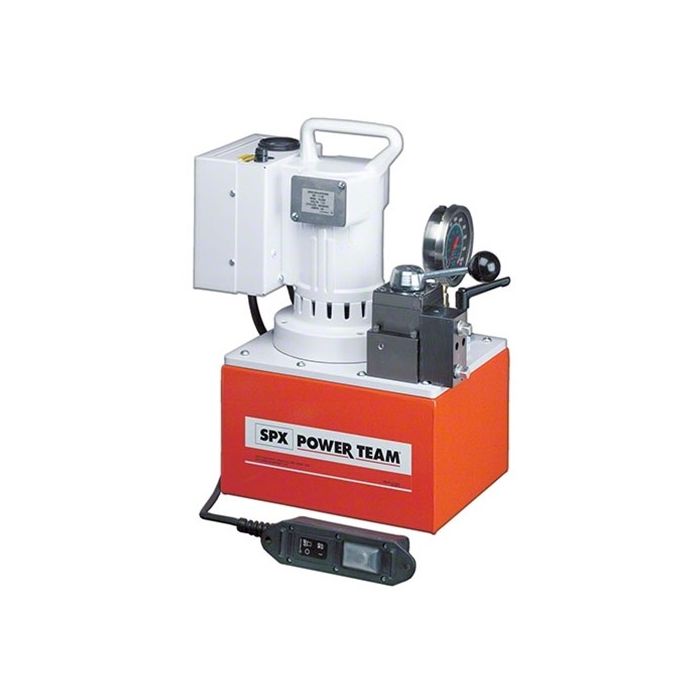

Electric 2-Speed Pump - Single-Acting, 1-1/8 hp, 2.50 gal Reservoir, 525.0 in³ Usable Capacity, 56 in³/min Flow at Max psi, 110/115 V, 50/60 Hz
Features
- Heavy duty multiple applications pump for heavy construction and concrete stressing up to 200 tons
- 1-1/8 hp, 12,000 rpm, 110/115 volt, 50/60 Hz universal motor; draws 25 amps at full load, starts at reduced voltage. CSA rated for intermittent duty
- 10 foot remote motor control (except PE552S which has a 25 foot remote motor and valve control)
- True unloading valve achieves greater pump efficiency, allowing higher flows at maximum
- Reservoirs available in sizes up to 10 gallons
- Light weight and portable. Best weight to performance ratio of all Power Team pumps
- Power Team’s "Assemble to Order" system allows you to choose from a wide range of pre-engineered, off-the-shelf components to build a customized pump to fit specific requirements. By selecting standard components, you get a "customized" pump without "customized" prices. All pumps come fully assembled, less oil, and ready for work
Specifications
- Pump type: Electric 2-Speed Pump
- Reservoir capacity (cubic inches): 577.5 in³
- For use with: Single-Acting Cylinders
- Usable oil capacity: 525.0 in³
- Power rating: 1-1/8 hp
- Typical flow at max psi: 56 in³/min
- Voltage: 110/115 V
- Typical flow at 10000 psi: 56 in³/min
- Frequency: 50/60 Hz
- Typical flow at 5000 psi: 74 in³/min
- Amperage: 25.0 A
- Typical flow at 700 psi: 440 in³/min
- Motor phase: 1 ph
- Typical flow at 0 psi: 704 in³/min
- Max rpm: 12000 rpm
- Maximum pressure: 10000 psi
- Sound level at idle/10000 psi: 90/89 dBA
- Valve type: 3-Way, 2-Position Manual Valve
- Overall length: 14.000 in
- Valve type/function: 3-Way, 2-Position / Advance Hold Return
- Overall width: 9.500 in
- Overall height: 18.250 in
- Control switch: Remote Motor
- Weight: 65.00 lbs
- Reservoir capacity: 2.50 gal
| Item Number | PE552 |
|---|---|
| Weight | 50.000000 |
