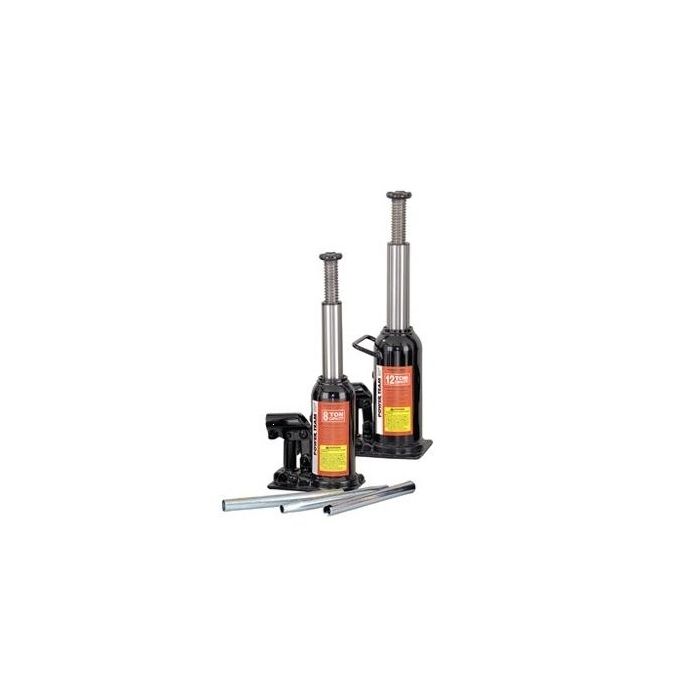

SPX 12 TON, 5-7/8" STROKE BOTTLE JACK
Pre Order Today
Item Number
9112A
Telescoping jacks offer all of the quality features and capabilities of the standard bottle jack line with a bonus. The super-long stroke of these jacks saves time and effort by eliminating the need to lift, crib, lift, etc. In most applications, the user can place the jack once and complete the lift. The 9015X offers very low clearance capability, making it the ideal choice for forklift maintenance or machine lifting. The taller 9006X, 9011X and 9013X all feature a unique beveled base that allows the jack to “follow” the load laterally as it is raised, greatly reducing side-loading of the piston.
Features
- Ideal for use in any number of industrial lifting and pushing applications
- All jacks can be used in the vertical, angled or horizontal positions
- Serrated or contoured saddles help stabilize the load for a safer lift
- All jacks meet ASME B30.1 standards and carry the Power Team Marathon Lifetime Warranty
Specifications
- Type/design: Bottle Jack
- Strokes to extend piston at max load capacity: 26 in
- Load capacity: 12 Ton
- Handle effort at rated capacity: 60 lb
- Stroke length: 5-7/8 in
- Pump handle length: 23-13/16 in
- Retracted height: 9-1/2 in
- Saddle diameter: 1-7/8 in
- Length of screw: 3-1/8 in
- Base dimensions: 6-1/2 x 4-3/16in Diameter
- Extended height: 18-1/2 in
- Weight: 17.5 lb
| Item Number | 9112A |
|---|---|
| Weight | 5.000000 |
