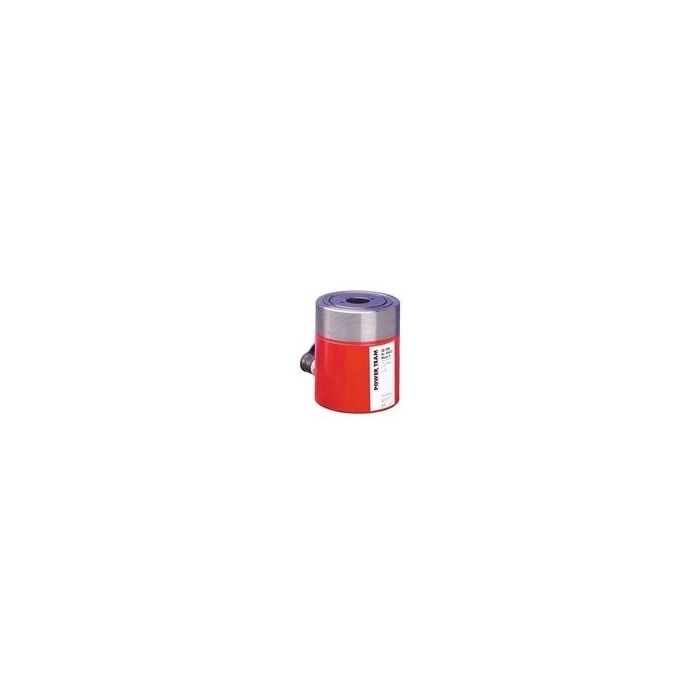

SPX 12 TON CYLINDER 1-5/8" STROKE

Features

• Center hole cylinder ideal for pulling and tensioning cables, anchor bolts with interchangeable piston head inserts
• Interchangeable piston head inserts (provide versatility of application)
• 12, 20, 30, 50, 60 Ton Single-Acting Models Feature Threaded Collar; Model RH203 and RHA306 do not feature the collar thread
• Withstands full "dead-end" loads
• Corrosion resistant standpipe has "Power Tech" treatment
• All cylinders except RH120 are furnished with a 9796 3/8" NPT female half coupler
• Aluminum cylinder body and piston are featured on the RHA306 cylinder

Specifications

• Cyl. Cap. (tons): 12
• Stroke (in.): 1-5/8
• Oil Cap. (cu. in.): 4.49
• Mounting Holes and Bolt Circle (in.): None
• Cylinder Effective Area (sq. in.): 2.76
• Internal Pressure at Cap. (psi): 8,692
• Tons at 10,000 psi (in.): 13.8
• Weight (lbs.): 6.6
• Retracted Height (in.): 4 -13/16
• Ex- tended Height (in.): 6 -7/16
• Outside Dia. (in.): 2 3/4
• Collar Thread (in.): 2 3/4-16
• Collar Thread Length (in.): 1-1/4
• Base to Port (in.): 1
• Piston Rod Dia. (in.): 1-3/8
• Center Hole Dia. (in.): 51/64
• Insert Thread Size (in.): None
