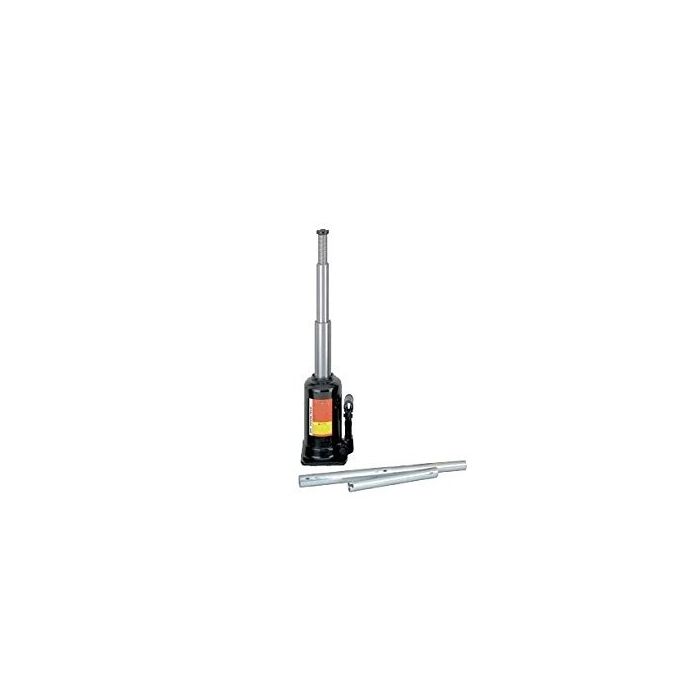

SPX 13 TON, 10" STROKE BOTTLE JACK
Pre Order Today
Item Number
9013X
Telescoping jacks offer all the quality features and capabilities of the standard bottle jack line with a bonus. The super-long stroke of these jacks saves time and effort by eliminating the need to lift, crib, lift, etc. In most applications, the user can place the jack once and complete the lift. The taller 9006X, 9011X and 9013X all feature a unique beveled base that allows the jack to “follow” the load laterally as it is raised, greatly reducing side-loading of the piston.
Specifications
- Type/design: Telescoping Bottle Jack
- Strokes to extend piston at max load capacity: 35 in
- Load capacity: 13 Ton
- Handle effort at rated capacity: 79 lb
- Stroke length: 10 in
- Pump handle length: 27-9/16 in
- Retracted height: 9-1/16 in
- Saddle diameter: 1-7/8 in
- Length of screw: 3-5/16 in
- Base dimensions: 6-15/16 x 7 5/16 in
- Extended height: 22-7/16 in
- Weight: 25 lb
- Carry Handle: Yes
| Item Number | 9013X |
|---|---|
| Weight | 20.000000 |
