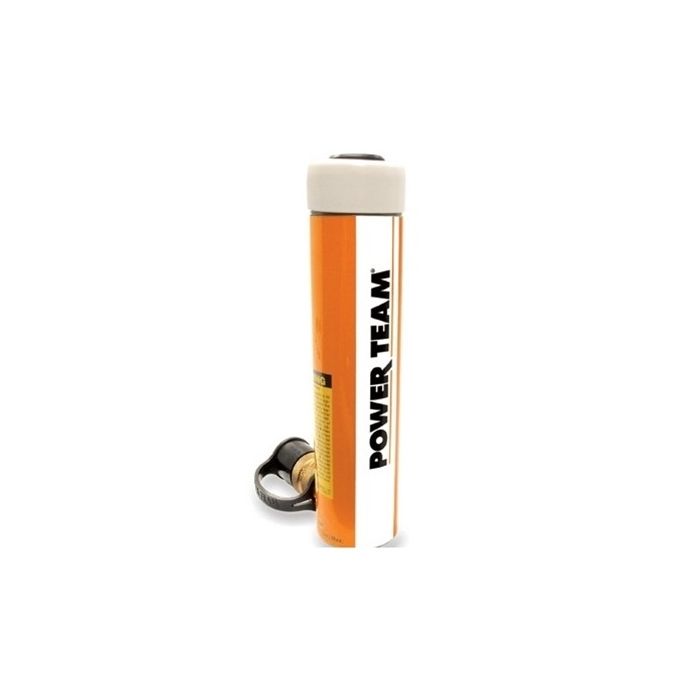

Power Team 15 Ton Cylinder, Single Acting, 4-1/8” Stroke

SKU: C154C

Aluminum bronze bearing reduces wear caused by off-center loads. Maximum sized springs speed piston return and increase spring life. Wide range of accessories available to thread onto piston rod, collar, or onto cylinder base. Single-Acting, Spring-Return. Rugged and high quality general purpose cylinder used for lifting and pressing.
SPX/Power Team Jacks and Supports

Manufacturer’s shipping direct can often be shipped within 1-2 business days but need to call us 800-228-3699 to confirm. Standard Manufacturer shipping typically will be the next business day but can be the following day and can take longer for BACK ORDERS, special freight requirements or if assembled to order. We will email you if any delays are expected from the Manufacturer. Please call 800-228-3699 if you have any questions related to shipping.



  • Cylinder Cap tons: 15
  • Stroke (in): 4-1/8
  • Oil cap (cu. in): 12.9
  • Bore Diameter (in): 2
  • Cylinder Effective Area (sq. in): 3.142
  • Internal Press at cap (psi): 9,549
  • Tons at 10,000 (psi): 15.7
  • Weight (lbs): 11.5
  • Retracted Height (in): 7-7/8
  • Extended Height (in): 12
  • Outside Diameter (in): 2-3/4
  • Collar Thread (in): 2-3/4-16
  • Piston Collar Thread Length (in): 1-1/8
  • Base to Port (in): 3/4
  • Piston Rod Diameter (in): 1-3/4
  • Piston Int. Thread and Depth (in): 1-8 x 3/4
  • Rod Protrusion (in): ¼
Additional Info
Manufacturer SPX/Power Team
