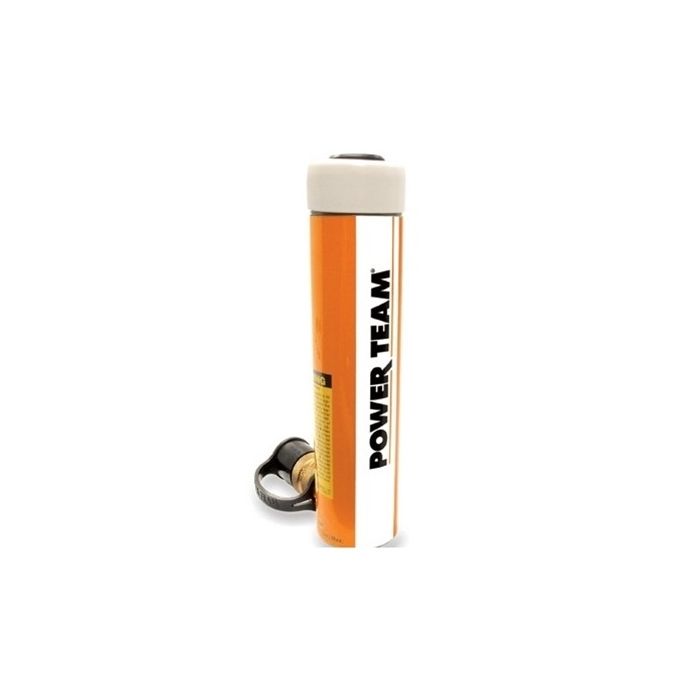

SPX 15 TON 6-1/8" STROKE CYLINDER
Pre Order Today
Item Number
C156C
Aluminum bronze bearing reduces wear caused by off-center loads. Maximum sized springs speed piston return and increase spring life. Wide range of accessories available to thread onto piston rod, collar, or onto cylinder base. Single-Acting, Spring-Return. Rugged and high quality general purpose cylinder used for lifting and pressing.
Specifications
- Cylinder Cap tons: 15
- Stroke (in): 6-1/8
- Oil cap (cu. in): 19.2
- Bore Diameter (in): 2
- Cylinder Effective Area (sq. in): 3.142
- Internal Press at cap (psi): 9,549
- Tons at 10,000 (psi): 15.7
- Weight (lbs): 15.3
- Retracted Height (in): 10-11/16
- Extended Height (in): 16-13/16
- Outside Diameter (in): 2-3/4
- Collar Thread (in): 2-3/4-16
- Piston Collar Thread Length (in): 1-1/8
- Base to Port (in): 3/4
- Piston Rod Diameter (in): 1-3/4
- Piston Int. Thread and Depth (in): 1-8 x 3/4
- Rod Protrusion (in): 1/4
| Item Number | C156C |
|---|---|
| Weight | 24.000000 |
