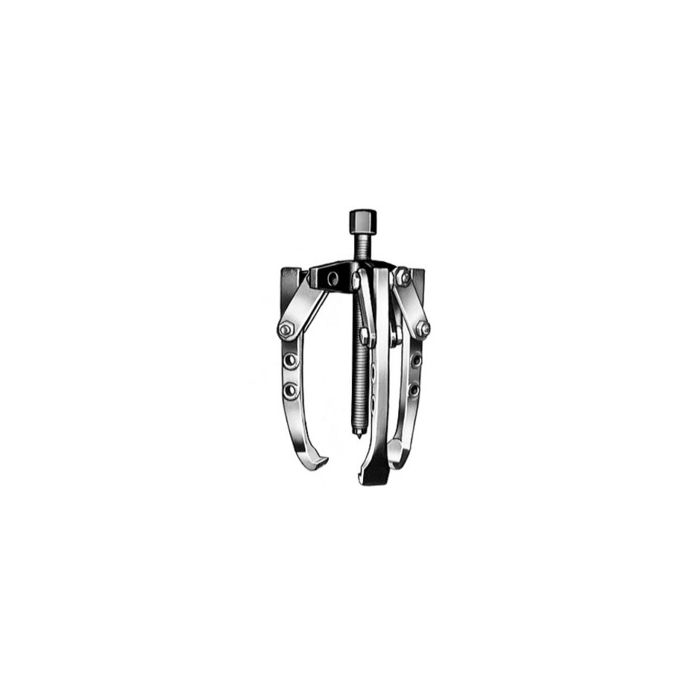

SPX 7 TON 2/3 JAW PULLER
Pre Order Today
Item Number
1038
Choosing the right size puller: Compare the “reach” and “spread” of the pulling job with that of the pullers listed. The puller selected must have dimensions greater than those of the job.
Specifications
- Capacity tons: 7
- Style: Long 2/3 Jaw
- Weight (lbs): 8.10
- Maximum Reach (in): 8-3/4
- Maximum Spread (in): 11
- Screw size (in): 11/16 – 18 x 9
- Jaw Thickness (in): 11/32
- Jaw Width (in): 1
Features
- Grip-O-Matic® feature on all pullers. The harder the pull, the tighter the grip for removing gears, bearings and countless other press fitted parts.
- 2-way, 3-way and 2/3-way combination pullers make it easy to select a specific puller for a specific application.
- Forged from high quality steel, heat treated and subjected to rigorous tests which exceed rated puller capacity.
- Alloy steel heads are forged for maximum strength.
- Forcing screw threads are rolled, not cut. This process creates a smoother and stronger thread.
- Heat treated alloy steel cross bolts for maximum shear strength.
- Machined puller jaw toes produce larger and stronger pulling toes.
