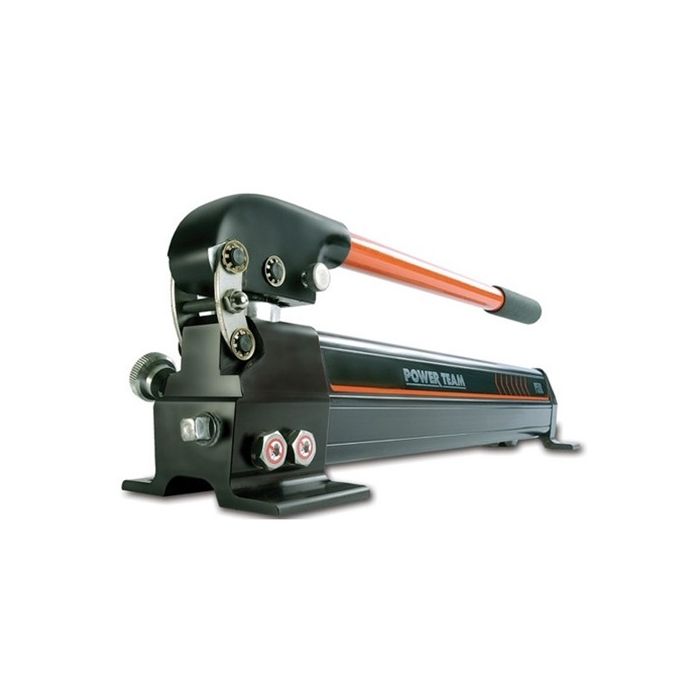

SPX POWER TEAM 2-SPEED HYDRAULIC HAND PUMP
In stock
Only 2 left
Item Number
P59L
Two Speed Hand Pump for Large/Longer Stroke Cylinders - 29.000 in³ Oil Capacity, 10000 psi Max Pressure, 0.050 in³ Max Volume per Stroke, 2-Way Valve
Features
- More usable oil volume—use with larger or longer stroke cylinders
- True unloading valve set for 850 PSI (59 Bar) provides more efficiency and lower handle force
- Link design reduces handle effort by 40%
- Durable aluminum reservoir, manifold, and end cap
- Ergonomic non-slip handle grip provides more comfort
- Spring loaded handle lock incorporated into handle
Specifications
- Pump type: two Speed
- Oil Port Size: 3/8 NPTF
- Handle angle: 50°
- Use with ram type: Large/Longer Stroke Cylinder
- Handle effort: 104.00 lb
- Oil capacity: 69.000 in³
- Overall length: 21.000 in
- Usable oil capacity: 66.000 in³
- Maximum Pressure at Low Speed: 850 psi
- Overall width: 5.000 in
- Maximum operating pressure:10000 psi
- Overall height: 7.000 in
- Volume per stroke at high pressure: 0.150 in³
- Volume per stroke at low pressure: 0.720 in³
- Weight: 8.9 lb
- Valve type: 2-Way
| Item Number | P59L |
|---|---|
| Weight | 50.000000 |
| Vendor Part Number | P59L |
