SPX 2-SPEED HAND PUMP .160-2.6CU IN/STROKE
In stock
Only 1 left
Item Number
P159

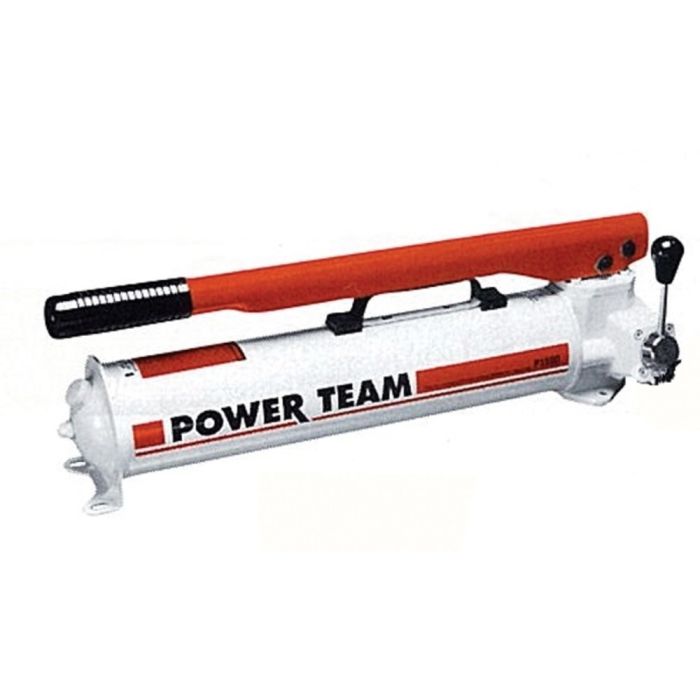

Two Speed Hand Pump for Single Acting Cylinders - 152.000 in³ Oil Capacity, 10000 psi Max Pressure, 0.160 in³ Max Volume per Stroke, 2-Way Valve
Specifications:
- Pump type: two Speed
- Oil Port Size: 3/8 NPTF
- Handle angle: 39°
- Use with ram type: Single Acting Cylinder
- Handle effort: 140.00 lb
- Oil capacity: 152.000 in³
- Overall length: 22.750 in
- Usable oil capacity: 137.000 in³
- Overall width: 3.875 in
- Maximum operating pressure:10000 psi
- Overall height: 7.750 in
- Volume per stroke at high pressure: 0.160 in³
- Volume per stroke at low pressure: 2.600 in³
- Weight: 26.2 lb
- Valve type: 2-Way
Features:
- All metal construction won't burn through in welding environments.
- Formed metal handle provides less flex and reduces operator fatigue.
- Convenient fill port on P23 and P55 allows pumps to be filled in a horizontal or vertical position.
- Fill cap seal acts as safety valve preventing over-pressurizing of reservoir.
- Relief valve inboard of check valve prevents loads from drifting down.
- Large valve knob gives added control for slowly metering loads down.
| Item Number | P159 |
|---|---|
| Weight | 50.000000 |
| Vendor Part Number | P159 |
