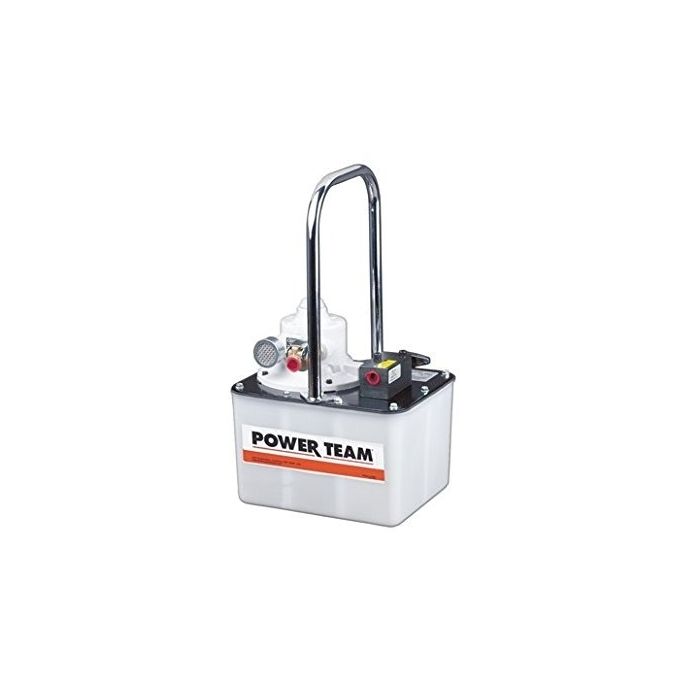

SPX 2-SPEED SINGLE ACTING AIR PUMP 2-WAY VALVE, 10,000PSI 2GALLON RESERVOIR
In stock
Only 1 left
Item Number
PA172
17 cu. in./min (279 cu cm/min). High Volume Rotary-Style Air Motor used where electricity is unavailable or where sparks are a concern.
Features
- Rotary style air motor-use where air is the preferred source of energy, where electricity is unavailable or sparks are a concern
- Two-speed operation for high speed cylinder advance
- Durable two-gallon thermoplastic reservoir. (Metal reservoir conversion kits are available.)
- Features air motor capable of starting under full load
Specifications
- Pump type: PA17 Air-Driven Hydraulic Two-Speed Pump
- Typical flow at 10000 psi: 17.000 in³/min
- For use with: Single-Acting Cylinders
- Valve part number: 9517
- Reservoir capacity: 2.00 gal
- Valve type: 2-Way, 2-Position Manual Valve
- Reservoir capacity (cubic inches): 462.0 in³
- Valve type/function: 2-Way, 2-Position / Advance Return
- Air pressure range: 40 to 120 psi
- Valve function details: Cylinder piston "advance", "hold" and "retract".
- Usable oil capacity: 295.0 in³
- Outlet port size: 3/8 NPTF
- Maximum pressure: 10000 psi
- Reservoir material: Thermoplastic
- Typical flow at max psi: 17 in³/min
- Length: 11.38 in
- Typical flow at 0 psi: 290.000 in³/min
- Width: 9.25 in
- Typical flow at 100 psi: 240.000 in³/min
- Height: 14.13 in
- Typical flow at 1000 psi: 24.000 in³/min
- Weight: 40.00 lb
- Typical flow at 5000 psi: 23.000 in³/min
| Item Number | PA172 |
|---|---|
| Weight | 50.000000 |
| Vendor Part Number | PA172 |
