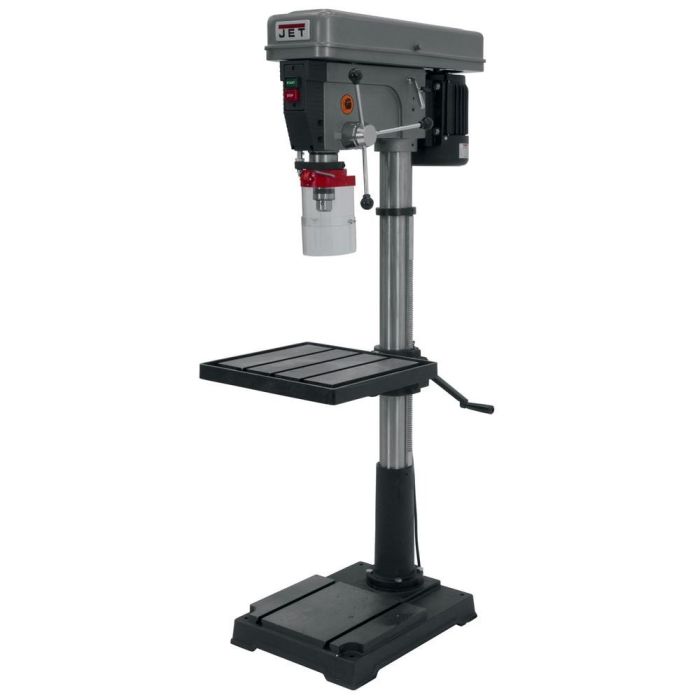

JET J-2550 20" FLOOR MODEL DRILL PRESS 115V 1PH
Pre Order Today
Item Number
354402
Accuracy, stability and versatility are the benchmark features of the JET 20 in. drill presses. This high quality line of JET drill presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry leading 2 year warranty.
Features
- Large quill allows greater accuracy
- Head casting features a permanently lubricated ball bearing spindle assembly, using four heavy duty ball bearings in an enclosed quill for longer life
Specifications
- Base Dimensions (In.) 22-3/4 x 17-3/4
- Column Diameter (In.) 3-5/8
- Distance Column to Spindle (In.) 10
- Drilling Capacity Cast Iron (In.) 3/4
- Drilling Capacity Mild Steel (In.) 5/8
- Drills to Center of Circle (In.) 20
- Motor (HP) 1 HP, 115/230V, 1Ph
- Number of Spindle Speeds 12
- Overall Dimensions (L x W x H) (In.) 33-1/2 x 18-1/2 x 67
- Prop 65 Cancer and Reproductive Harm
- Range of Spindle Speeds (RPM) 150, 260, 300, 440, 490, 540, 1,150, 1,550, 1,840, 2,220, 2,950, 4,200
- Spindle Distance to Base (In.) 43-1/2
- Spindle Distance to Table (Max.) (In.) 24
- Spindle Taper (In. x TPI) MT-3
- Spindle Travel (In.) 4-3/4
- Style (Type) Belt Drive
- T-Slot Centers (In.) 4
- T-Slots Number and Size (In.) 3 and 1/2
- Table Size (L x W) (In.) 18-11/16 x 16-3/4
- Table Travel (In.) 21-1/2
- Weight (Lbs.) 304
- Work Table Weight Capacity (Lbs.) 66
| Item Number | 354402 |
|---|---|
| Weight | 304.000000 |
