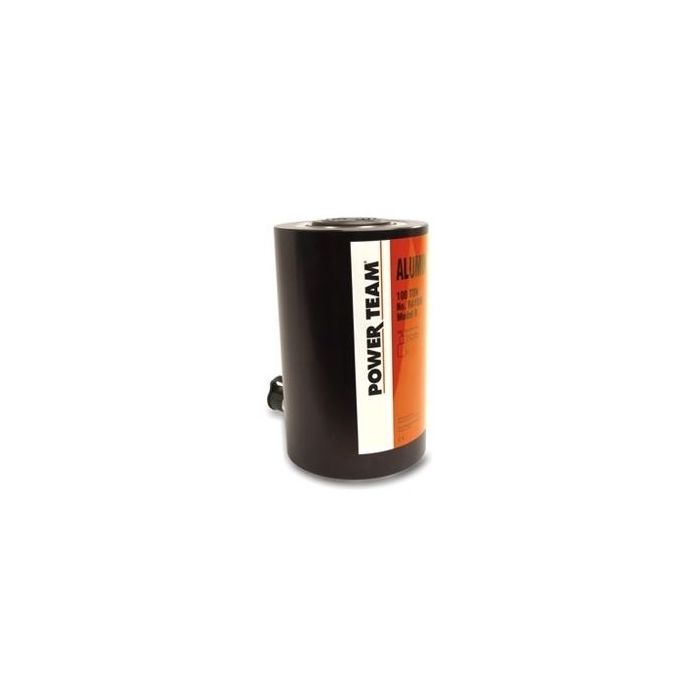

SPX 20 TON CYLINDER 6-1/8" STROKE

Features

• Half the weight of equal capacity steel cylinders, aluminum body resists sparking in explosive environments
• Aluminum body resists sparking in explosive environments
• Hard coated aluminum piston rod and cylinder bore resist wear and corrosion
• Grooved piston top helps keep the load from sliding on top of piston
• Designed for jacking and other non-production operations

Specifications

• Cyl. Cap. (tons): 20
• Stroke (in.): 6 1/8
• Oil Cap. (cu. in.): 27.13
• Bore Dia. (in.): 2 3/8
• Cylinder Effective Area (sq. in.): 4.43
• Internal Pressure at Cap. (psi): 9,030
• Tons at 10000 (psi): 22.15
• Weight (lbs.): 11.3
• Retracted Ht. (in.): 10 3/8
• Extended Height (in.): 16 1/2
• Outside Dia. (in.): 3 3/4
• Base to Port (in.): 1 1/4
• Piston Rod Dia. (in.): 2
• Piston Rod Protrusion (in.): 5/16
