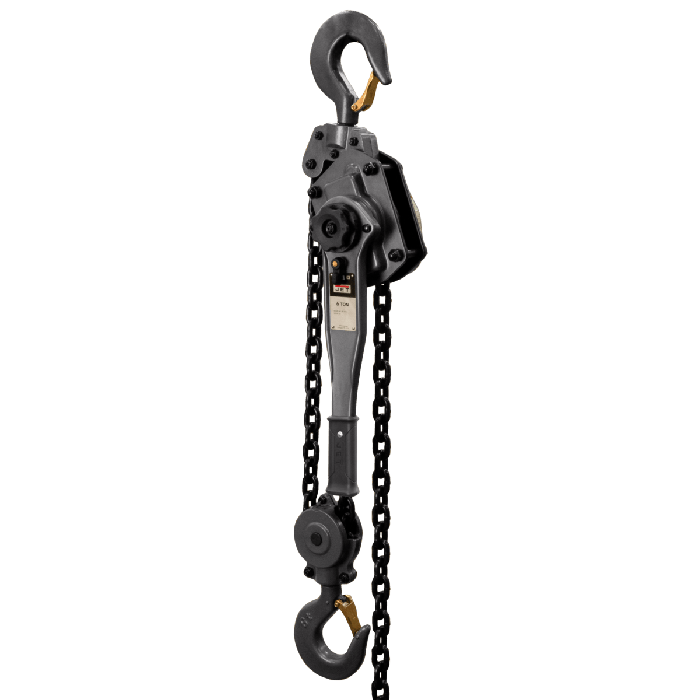

JET JLP-600A-5 6 TON LEVER HOIST WITH 5' LIFT
Pre Order Today
Item Number
287600
JET® JLP-A Series Lever Hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLP-A Lever Hoist is available in ¼ ton to 6 ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET® JLP-A Series is the perfect choice for a contractor grade Lever Hoist.
Features
- Grade 80 black oxide coated load chain for added durability
- Impact resistant all steel construction for added durability and protection
- Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
- Needle bearings support the load sheave to increase efficiency and promote smooth operation
- JET’s improved easy free chain design is a two-step, no load, free chaining system. The system permits quicker hoist positioning and take up of slack chain, and is engineered not to free chain under load
- NEW! Redesigned ergonomic grip allows for greater operator control and increased comfort
- Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
- Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
Specifications
- Headroom (in.) 24-2/5
- Capacity (Lbs.) 13200
- Lift (Ft.) 5
- Load Capacity (Tons) 6
- Load Chain Dimensions dia/mm) 10 x 30
- Prop 65 Cancer and Reproductive Harm
- Weight (Lbs.) 60
- Lever Length (in.) 16-1/7
- Lbs. of Pull to Lift Capacity 77.0000
| Item Number | 287600 |
|---|
