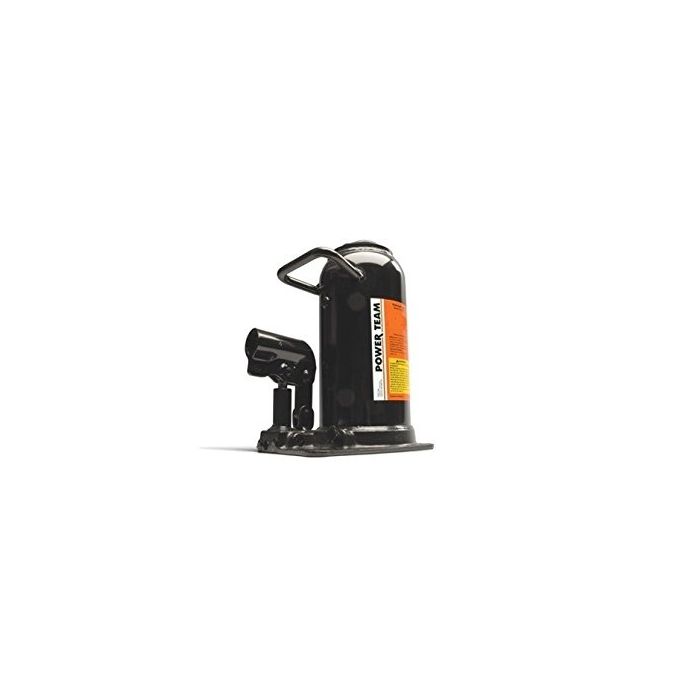

SPX 30 TON, 6-1/4" STROKE BOTTLE JACK
Pre Order Today
Item Number
9030A
Choose from this complete line of premium quality, standard bottle jacks. Ideal for use in any number of industrial lifting and pushing applications. The 9110B, 9015B, 9022B and 9033B feature a beveled base which allows the jack to “follow” the load, reducing the chance of dangerous side-loading. Many jacks feature screw extensions Some jacks can be used in the vertical, angled or horizontal positions. Serrated or contoured saddles help stabilize the load for a safer lift. All jacks meet ASME B30.1 standards and carry the Powerthon™ Lifetime Warranty. 110-ton jack features dual pumps for time-saving two-speed operation.
Specifications
- Type/design: Bottle Jack
- Strokes to extend piston at max load capacity: 35 in
- Load capacity: 30 Ton
- Handle effort at rated capacity: 50 lb
- Stroke length: 6-1/4 in
- Pump handle length: 39-3/8 in
- Retracted height: 11 in
- Saddle diameter: 2-3/8 in
- Length of screw: No Screw
- Base dimensions: 7-9/16 x 5-9/16 in
- Extended height: 17-1/4 in
- Weight: 41.2 lb
- Carry Handle: Yes
| Item Number | 9030A |
|---|---|
| Weight | 0.000000 |
