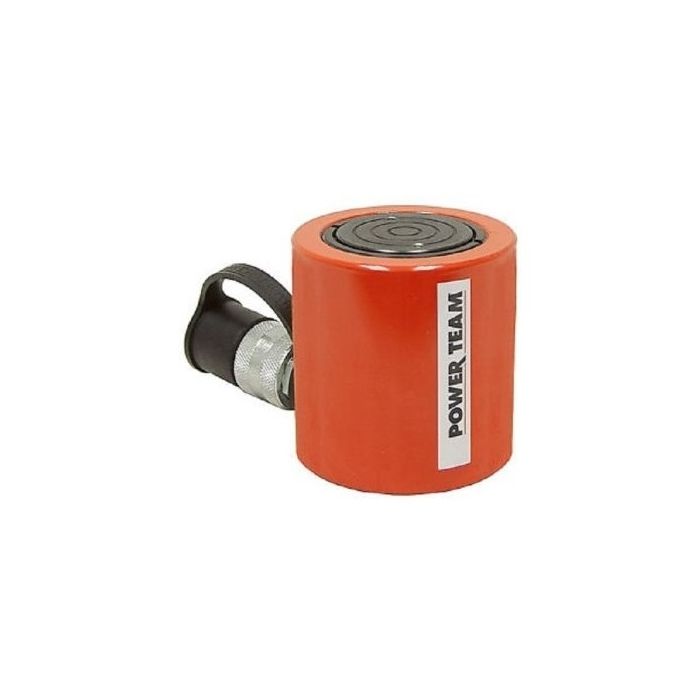

SPX POWER TEAM 30 TON HYDRAULIC 2-7/16" STROKE SINGLE ACTING CYLINDER
In stock
Only 3 left
Item Number
RSS302
Power Tech plated piston rods and gland nuts resist scoring and corrosion. Heavy duty return spring (except for double-acting models) provides fast piston return & low collapsed height. Coupler on 10 thru 50-ton models is angled upward 5° for added clearance. Grooved piston top keeps load from sliding. Cylinders can be “dead-ended” at full capacity. Removable carrying handles on 100 ton and 250-ton models.
Specifications
- Cyl Cap. (tons): 30
- Stroke (in.): 2-7/16
- Oil Cap. (cu. in.) Push: 15.8
- Bore Dia. (in.): 2-7/8
- Cylinder Effective Area (sq. in.) Push: 6.49
- Internal Press at Cap. (psi) Push: 9,243
- Tons at 10000 (psi) Push: 32.5
- Weight (lbs.): 14.7
- A: Retracted Height (in.): 4-5/8
- B: Extended Height (in.): 7-1/16
- C: Outside Dia. (in.): 4
- F: Base to Port (in.): 5/8
- H: Piston Rod Dia. (in.): 2-1/2
| Item Number | RSS302 |
|---|---|
| Weight | 15.000000 |
| Vendor Part Number | RSS302 |
