JET 16-1/2" FLOORSTANDING DRILL PRESS 3/4HP 1PH 115/230V
Pre Order Today
Item Number
354169

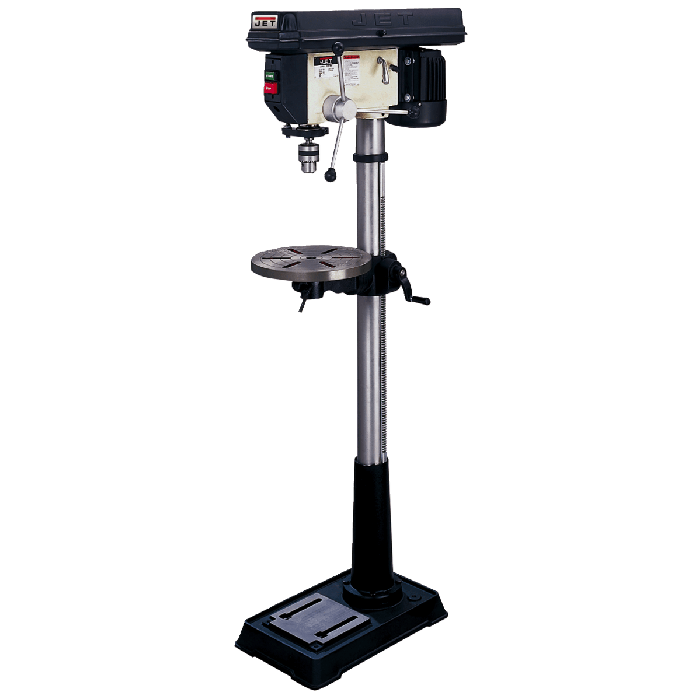

The JET JDP-17MF Floor Drill Press is a true woodworker's drill press. With 16 speeds, it lets you choose the best speed for the job. It comes equipped with a quick release crank operated worktable, work light, X-pattern mounting grooves, depth stop, and adjustable tension spindle return spring which is ideal for repetitive drilling of the same depth.
Features
- X pattern mounting grooves in table allow mounting a fence when table is in reverse position
- 16 Speeds lets you choose the best speed for the job
- Adjustable tension spindle return spring
- Adjustable tension spindle return spring is ideal for repetitive drilling of the same depth
- Built-in work light (bulb not included) provides additional visibility of your work
- Depth stop displays inch/mm and has a quick set bolt for fast, accurate adjustments
- Hinged metal belt and pulley cover
- Hinged metal belt and pulley cover provides easy access to the quick adjustment motor mount to allow rapid spindle speed changes
- Quick release crank operated worktable height adjustment rotates + or - 45° for versatility
- Spindle has high-quality ball bearing construction for long life-
Specifications
- Chuck Size (In.) 5/8
- Column Diameter (In.) 3-1/8
- Motor Amps 9/4.5
- Motor Power (HP) 3/4
- Spindle Distance to Table (Max.) (In.) 29-1/8
- Spindle Travel (In.) 4-3/8
- Swing (In.) 16-1/2
| Item Number | 354169 |
|---|---|
| Weight | 200.000000 |
