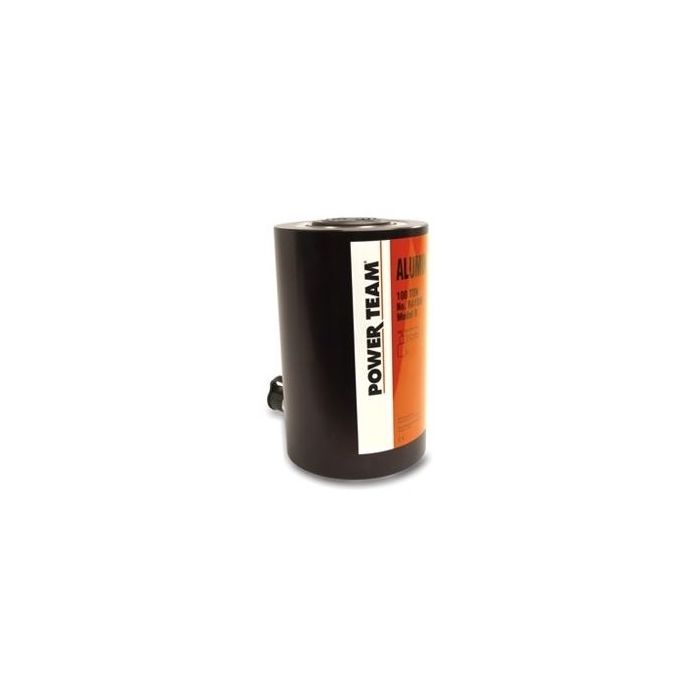

SPX 55 TON CYLINDER 2-1/8" STROKE

Features

• Half the weight of equal capacity steel cylinders, aluminum body resists sparking in explosive environments
• Aluminum body resists sparking in explosive environments
• Hard coated aluminum piston rod and cylinder bore resist wear and corrosion
• Grooved piston top helps keep the load from sliding on top of piston
• Designed for jacking and other non-production operations

Specifications

• Cyl. Cap. (tons): 55
• Stroke (in.): 2 1/8
• Oil Cap. (cu. in.): 23.5
• Bore Dia. (in.): 3-3/4
• Cylinder Effective Area (sq. in.): 11.04
• Internal Pressure at Cap. (psi): 9,960
• Tons at 10000 (psi): 55.2
• Weight (lbs.): 16.2
• Retracted Ht. (in.): 6-3/4
• Extended Height (in.): 8-7/8
• Outside Dia. (in.): 5-1/4
• Base to Port (in.): 1-3/8
• Piston Rod Dia. (in.): 3-1/8
• Piston Rod Protrusion (in.): 1/4
