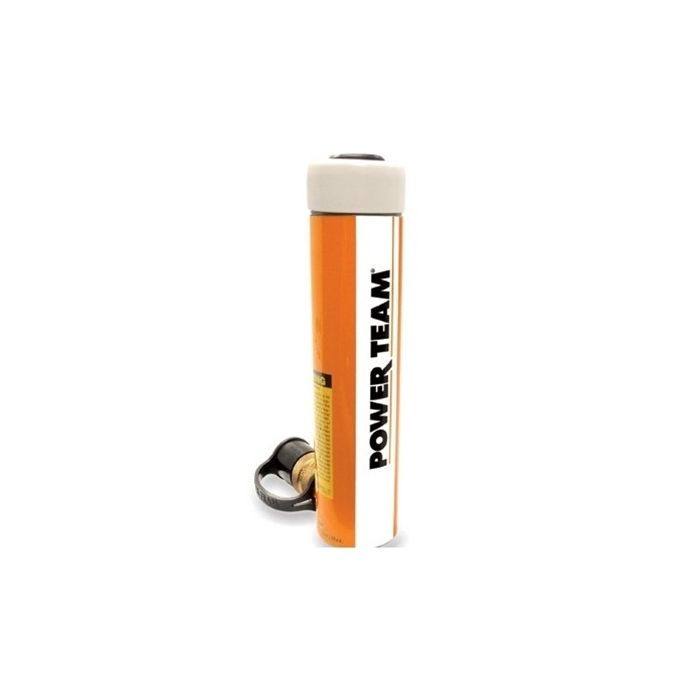

SPX 5 TON 1" STROKE CYLINDER
Pre Order Today
Item Number
C51C
Aluminum bronze bearing reduces wear caused by off-center loads. Maximum sized springs speed piston return and increase spring life. Wide range of accessories available to thread onto piston rod, collar, or onto cylinder base. Single-Acting, Spring-Return. Rugged and high quality general purpose cylinder used for lifting and pressing.
Specifications
- Cylinder Cap tons: 5
- Stroke (in): 1
- Oil cap (cu. in): 1.1
- Bore Diameter (in): 1-1/8
- Cylinder Effective Area (sq. in): 0.994
- Internal Press at cap (psi): 10.061
- Tons at 10,000 (psi): 4.97
- Weight (lbs): 2.25
- Retracted Height (in): 4-11/32
- Extended Height (in): 5-7/8
- Outside Diameter (in): 1-1/2
- Collar Thread (in): 1-1/2 - 16
- Piston Collar Thread Length (in): 1-1/8
- Base to Port (in): 3/4
- Piston Rod Diameter (in): 1
- Piston Int. Thread and Depth (in): 3/4 - 16 x 5/8
- Rod Protrusion (in): 1/4
| Item Number | C51C |
|---|---|
| Weight | 5.000000 |
