JET DC-1100VX-5M DUST COLLECTOR 1.5HP 1PH, 115/230V, 5-MICRON BAG FILTER KIT
Pre Order Today
Item Number
708658K

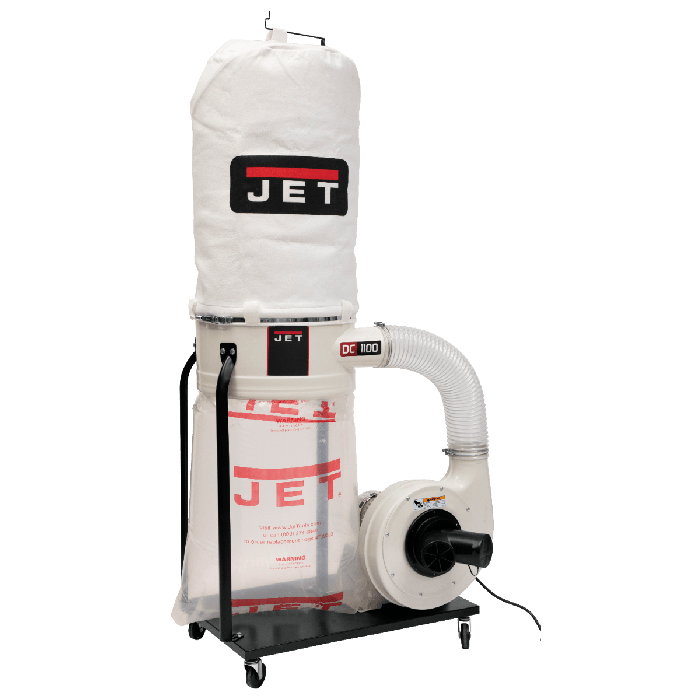

The JET® DC-1100VX-5M features the exclusive Vortex Cone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The filter bag captures up to 98% of 5-micron particles. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.
Features
- Eliminates premature filter clogging for sustained performance
- High air velocity (CFM) design stands up to any competitive specifications
- Includes four casters for maneuverability and total portability
- Industrial controls designed for years of trouble-free use
- Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
- Quick-connect collection bags with elastic band for fast, easy installation and removal
- Single-stage design for economical and quiet operation
- Vortex Cone improves chip separation and collector bag packing efficiency
Specifications
- 1-Hose Connection Diameter (In.) 6
- 2-Hoses Connection Diameter (In.) 4
- Air Flow @ 4" (CFM) 1100
- Bag Diameter (In.) 20
- Collection Bag Capacity (Cu. Ft.) 5-3/10
- Collection Bag Length (In.) 30
- Efficiency (Micron) 5
- Impeller Material Steel
- Motor Amps 11/5.5
- Motor Phase 1
- Motor Power (HP) 1-1/2
- Motor Voltage (V.) 115/230
- Net Weight (Lbs.) 103
- Overall Dimensions (L x W x H) (In.) 37" x 28" x 79"
- Prewired Voltage (V.) 115
- Prop 65 Cancer and Reproductive Harm
- Sound Rating (Db.) 70 - 80
- Static Pressure (Wc.) 10-1/2
- Style (Type) Bag
- Velocity @ 4" (FPM) 12,571
| Item Number | 708658K |
|---|---|
| Weight | 150.000000 |
