JET XACTA SAW DELUXE 3HP 1Ph 230V 30" FENCE SYSTEM
Pre Order Today
Item Number
708674PK

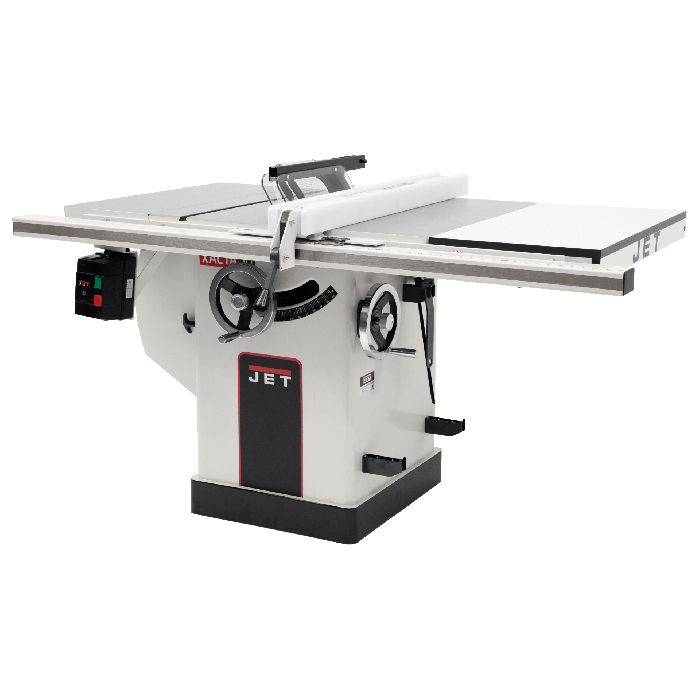

If you've ever wondered about what a table saw can really do, look no further. Introducing the JET® 10" Deluxe XACTA® saw. The quick release riving knife and integrated push button arbor lock keeps the operator safe and more efficient. The Deluxe XACTA® saw offers an upgraded Poly-V belt drive system for smooth operation and optimal power transfer, a fully shrouded blade for highly efficient dust collection. The 26" x 30" wings and deeper table gives you even more cast iron to work on.
Features
- Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
- Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement
- Hinged motor cover on cabinet gives quick access to the motor and belts
- Independent leaf safety guard protects operator from blade while cutting, even at 45° tilt
- Left and right cast iron extension wings
- Powder coated paint for a long-lasting, chip-resistant finish
- Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning
- Rail-mounted magnetic switch is easy to reach and provides overload protection
- Wide stance heavy-duty trunnion for stability and smooth blade positioning
Specifications
- Stock Number 708674PK
- Blade Diameter (In.) 10
- Dust Collection Minimum CFM Required (CFM) 350
- Dust Port Outside Diameter (In.) 4
- Maximum Depth of Cut at 45 Degrees (In.) 2-1/8
- Maximum Diameter of Dado (In.) 8
- Maximum Rip Right of Blade (In.) 30
- Maximum Width of Dado (In.) 13/16
- Miter Gauge Type Deluxe
- Motor Amps 14.5
- Motor Phase Single
- Motor Power (HP) 3
- Motor Voltage (V.) 230
- Prewired Voltage (V.) 230
| Item Number | 708674PK |
|---|
