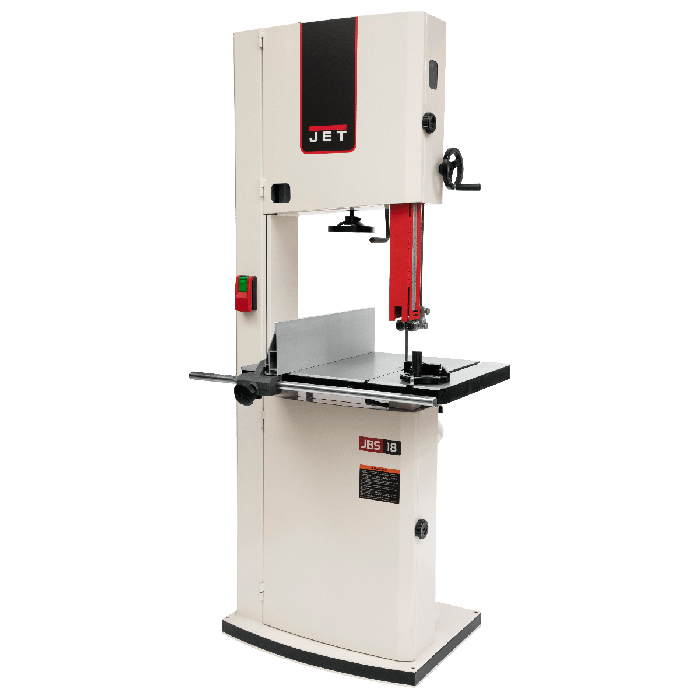

JET JWBS-18, 18" BANDSAW 1-3/4HP, 115/230V
Pre Order Today
Item Number
714700
Designed to perform, the Jet 18 In. Bandsaw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The Jet 18 In. steel frame Bandsaw is engineered to build great projects through superior performance.
Features
- 16 in. re-saw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels
- 27-1/4 in. x 20 in. precision ground cast iron table for added stability and work support
- Fence system features a micro-adjustable, dual-position side plate
- Tool-less, independently adjustable, upper and lower ball bearing guides
- Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
- Easy-to-read blade tension scale can be viewed through upper door window
- Single knob adjustment simplifies the blade tracking process
- Blade tracking window provides clear view of blade during tracking
- Heavy-duty tensioning with quick release features three settings: full tension, partial tension and full release
- Cast-iron trunnion for maximum support and stability
- Slotted table allows for front blade removal
- Cast-iron hand wheels and ergonomically designed knobs make adjustments smooth and easy
- Round table insert features leveling screws for precise adjustment
- Conveniently located dual 4 in. dust collection ports catch dust and chips at the source
- Table tilts 5 degrees left and 45 degrees right to accommodate a wide variety of cuts
Specifications
- Blade Length: 150"
- Blade Speed (SFM): 2,300 / 3,800
- Blade Width (Max.): 1-1/4 in.
- Blade Width (Min.): 1/8 in.
- Cutting Capacity (W x H): 18 in. x 16 in.
- Horsepower: 1.75 HP
- Motor Phase: 1
- PreWired Voltage: 115V/230V
- Table Dimensions: 27-1/4 in. x 20 in.
- Table Height: 37 in.
- Table Tilt (Left): 5 deg
- Table Tilt (Right): 45 deg
| Item Number | 714700 |
|---|---|
| Weight | 200.000000 |
