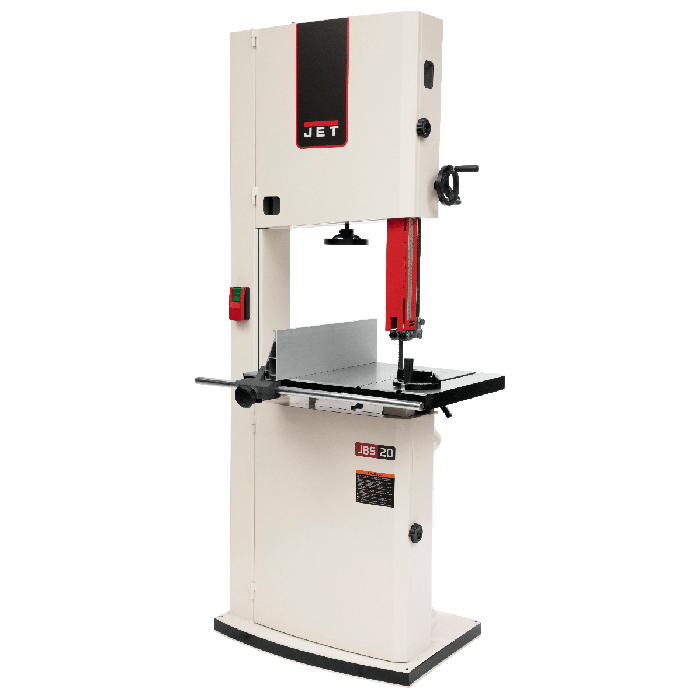

JET JWBS-20-3, 20" BANDSAW 3HP, 230V
Pre Order Today
Item Number
714800
Designed to perform; the JET 20” bandsaw delivers more re-saw capacity; greater throat depth and the horsepower you need to tackle bigger boards; create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large; independently adjustable guides are tool-less to save you time on set up. The JET 20” steel frame bandsaw is engineered to build great projects through superior performance.
Features
- 16" Resaw capacity for cutting large pieces of wood; slicing veneers and cutting book matched panels.
- 27-1/4" x 20" precision ground cast iron table for added stability and work support
- Fence system features a micro-adjustable; dual-position side plate
- Tool-less; independently adjustable; upper and lower ball bearing guides.
- Rigid; four-sided guide post with rack and pinion adjustment for optimum blade support.
- Easy-to-read blade tension scale can be viewed through upper door window.
- Single knob adjustment simplifies the blade tracking process.
- Blade tracking window provides clear view of blade during tracking
- Heavy duty tensioning with quick release features three settings: full tension; partial tension and full release.
- Cast iron trunnion for maximum support and stability.
- Slotted table allows for front blade removal.
- Cast iron handwheels and ergonomically designed knobs make adjustments smooth and easy.
- Round table insert features leveling screws for precise adjustment
- Conveniently located dual 4" dust collection ports catch dust and chips at the source.
- Table tilts 5° left and 45° right to accommodate a wide variety of cuts
Specifications
- Band Saw Size/Wheel Diameter (In.): 20-1/4
- Cutting Capacity Width (In.): 20
- Cutting Capacity Height (In.): 16
- Blade Speed (SFPM): 2530/4850
- Blade Width (In.): 1" x 3TPI
- Table Height from Floor (In.): 37
- Motor Power (HP): 3
- Motor Voltage (V): 230 Only
- Motor Amps: 12
| Item Number | 714800 |
|---|---|
| Weight | 200.000000 |
