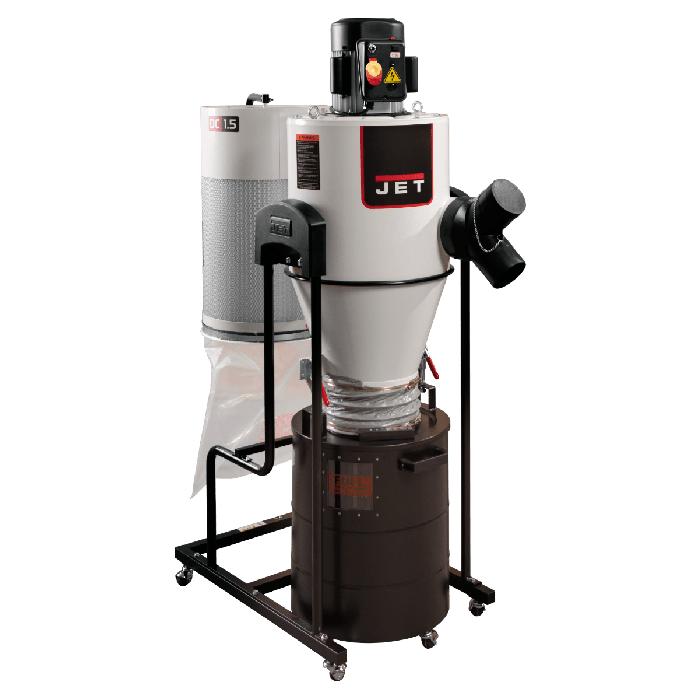

JET JCDC-1.5 CYCLONE DUST COLLECTOR 1.5HP, 1PH, 115V
Pre Order Today
Item Number
717515
Are you ready to get more from your dust collector? The Cyclone Dust Collector Collection from JET® delivers the efficiency you’ve been waiting for. With a direct mount filter, a radio frequency remote control and a large collection bin these dust collectors take your shop’s capabilities to a new level. Upgrade to a JET® Cyclone Dust Collector and experience The Power of Efficiency.
Features
- Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends
- Double paddle manual cleaning system quickly cleans the pleated filter
- Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below
- Heavy debris is captured in 20 gallon drum with quick release levers and independent casters for quick emptying
- Heavy debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
- Included radio frequency remote control works from up to 50 feet away
- Swivel casters make it easy to move the unit around the shop
- Cyclone's two stage separation provides more working CFM than comparable horsepower single stage units
Specifications
- 1-Hose Connection Diameter (In.) 6
- 2-Hoses Connection Diameter (In.) 4
- Canister Filter Length (In.) 15-3/4
- Collection Drum Capacity (gal.) 20
- Filter Efficiency (Micron) 1
- Footprint (L x W/In.) 47 x 22
- Impeller Material Steel
- Max. Static Pressure (Wc.) 8.268
- MERV Value 13
- Motor Amps 14
- Motor Power (HP) 1.5
- Motor Voltage (V.) 115
- Prewired Voltage (V.) 115
- Prop 65 Cancer and Reproductive Harm
- Sound Rating (Db.) 75
- Static Pressure Loss (EU Method) (Wc.) 2.677
- Static Pressure Loss (US Method) (Wc.) 1.535
| Item Number | 717515 |
|---|---|
| Weight | 250.000000 |
