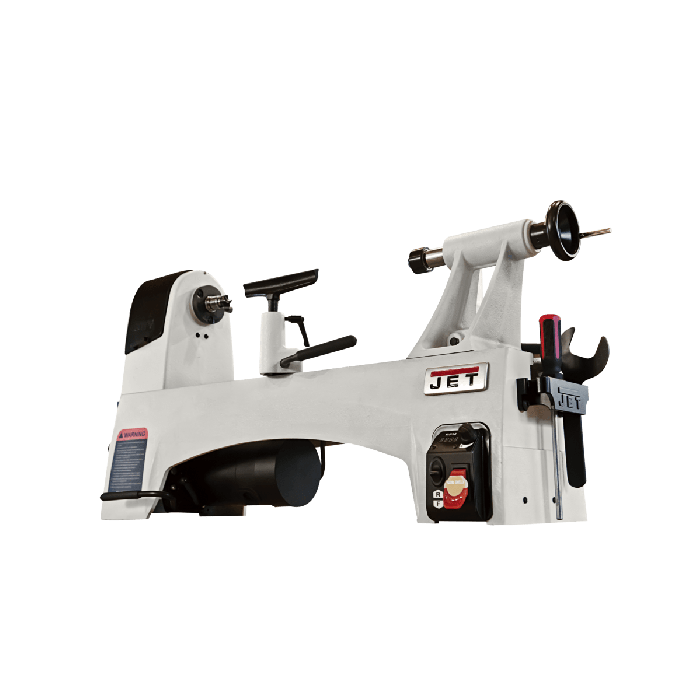

JET 12"X21" VARIABLE SPEED WOOD LATHE 1HP
Pre Order Today
Item Number
719200
The JET 1221VS is different from anything we’ve made before. In truth, it’s different from anything that anybody has ever made before. The design is better. The features are better. The entire turning experience is better. And it all focuses on one concept… Control.
Features
- 24 integrated indexing positions
- Acme Thread in Tailstock
- Conveniently located controls and DRO
- Forward to reverse is a smooth transition
- Innovative ratchet style belt tension system (patent pending)
- Integrated, spring loaded spindle lock
- Optimally designed speed ranges
- Patent Pending
- Unrivaled speed control
Specifications
- Height:17-7/10 Inches
- Width: 11 Inches
- Length: 33-3/5 Inches
- Swing Over Tool Rest Base: 9-9/20 Inches
- Distance Between Centers: 20-1/2 Inches
- Spindle Bore: 3/8 Inch
- Spindle Taper: MT2
- Tailstock Quill Taper: MT2
- Tailstock Quill Travel: 2-1/4 Inches
- Spindle Thread: 1 Inch/8 TPI
- Speed: 60 to 3,600 RPM
- Speed Ranges: 60 to 900, 110 to 1,800, 220 to 3,600
- Indexing Positions: 24
- Motor Power: 1 HP
- Motor Phase: 1
- Motor Voltage: 115 Volts
- Motor Current: 6 Amps
- Recommended Circuit Size: 10 Amps
| Item Number | 719200 |
|---|---|
| Weight | 300.000000 |
