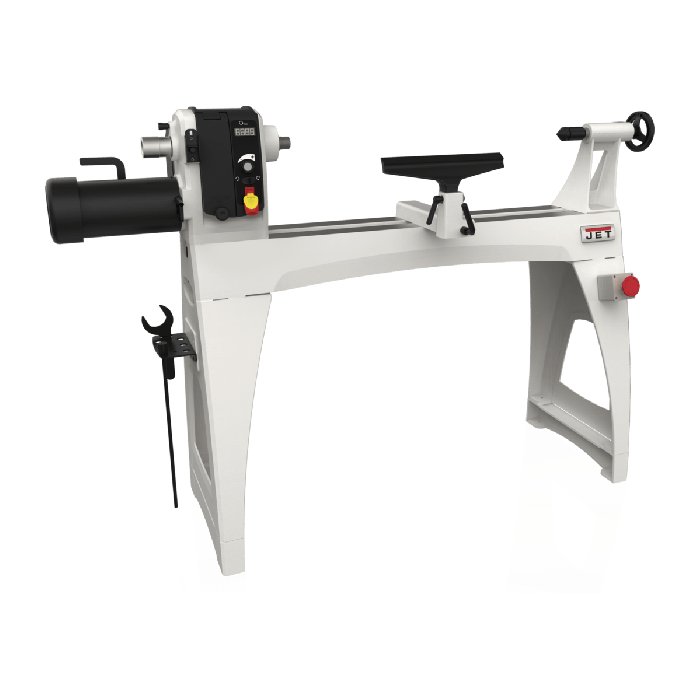

JET 18"X40" ELECTRONIC VARIABLE SPEED WOOD LATHE 2HP

Features

• 36 integrated indexing positions
• Banjo uses non-marring, positive locking wedge system to securely hold tool post
• Convenient leg-mounted tool holder
• Conveniently located digital readout
• E Drive Inverter features a built in EMI filter
• Electronic infinitely variable speed from 40 – 3200 RPM
• Extended spindle nose houses dual headstock spindle bearings
• Four inch cast iron risers allow user to adjust height of lathe for maximum comfort
• Headstock slides for maximum versatility
• Improved tailstock quill locking mechanism incorporates an anti-rotation key
• Inverter is enclosed for added protection
• Newly designed headstock locking handle accessible from front of lathe
• Remote emergency stop button can be situated along the lathe bed
• Rubber tool mat on top of headstock
• Spindle lock latch frees up both hands
• Tailstock features Acme threads for smooth and durable movement
• Tool post locking mechanism designed for year of consistent strength

Specifications

• Swing Over Bed (In.): 18-1/2
• Swing Over Tool Rest Base (In.): 14-1/4
• Distance Between Centers (In.): 40
• Headstock Movement : Slide & Rotate
• Spindle Bore (In.): 5/8
• Tailstock Bore (In.): 3/8
• Spindle Taper: MT2
• Quill Taper: MT2
• Quill Travel (In.): 4-1/4
• Spindle Thread (In./TPI): 1-1/4"/8 TPI
• Spindle Speeds: High 120-3200/Low 40-1200
• Speed Range: 40-3200
• Number of Indexing Positions: 36
• Centerline of Spindle to Floor (In.): 39-1/4; 43-1/4 w/risers
• Bed Construction: Cast Iron
• Motor Power (HP): 2
• Motor Phase (PH): 3
• Motor Voltage (V.): 230
• Prewired Voltage (V.): 230
• Wiring Remarks: 230v, 1ph input only
• Motor Amps: 6.1
• Recommended Circuit Size (Amps.): 20
