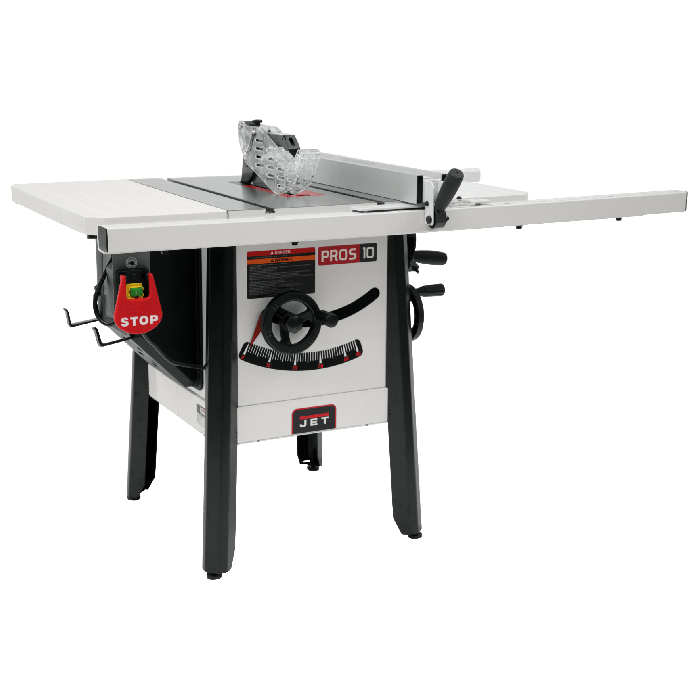

JET JPS-10 10" PROSHOP 2 1.75HP 1PH 115V 30" FENCE SYSTEM,STEEL RING,RIVING KNIF
Pre Order Today
Item Number
725004K
The JET ProShop Table Saw offers features you expect from a high-end cabinet saw, in the compact design of a contractor-style machine. The redesigned transparent blade guard has independent leaves, and the quick release riving knife reduces chance of kickback. A low profile riving knife is included for non-through cuts. The exclusive ProShop fence system is available in 30” or 52” rip capacity.
Features
- Convenient, magnetic paddle switch for the safest operation possible
- CSA Certified
- Improved dust shroud around blade for greater dust collection
- Innovative single belt design for easier belt tensioning and reduced vibration
- Low profile riving knife included
- Motor reset switch conveniently relocated to the power switch, instead of the motor
- Newly designed arbor lock to change blades quickly and easily
- On board storage for all included accessories
- Quick release riving knife for hassle free riving knife changes
- Redesigned guard for better protection and ease of use
Specifications
- Arbor Speed (RPM) 4000
- Blade Diameter (In.) 10
- Dust Collection Minimum CFM Required (CFM) 350
- Dust Port Outside Diameter (In.) 4
- Maximum Depth of Cut at 45 Degrees (In.) 2-1/8
- Maximum Depth of Cut (In.) 3-1/8
- Maximum Diameter of Dado (In.) 8
- Maximum Rip Left of Blade (In.) 13-1/2
- Maximum Rip Right of Blade (In.) 30
- Maximum Width of Dado (In.) 13/16
- Miter Gauge Type T-Slot with Stops
- Motor Amps 14.8
- Motor Power (HP) 1-3/4
- Motor Voltage (V.) 115
- Prewired Voltage (V.) 115
- Prop 65 Cancer and Reproductive Harm
- Recommended Circuit Size (Amps.) 20
- Style (Type) Contractor
- Table Height from Floor (In.) 34-3/4
- Table in Front of Saw Blade at Maximum Depth of Cut (In.) 8.81
- Table Size (L x W) (In.) 20 x 27
- Table Type Cast Iron
| Item Number | 725004K |
|---|
