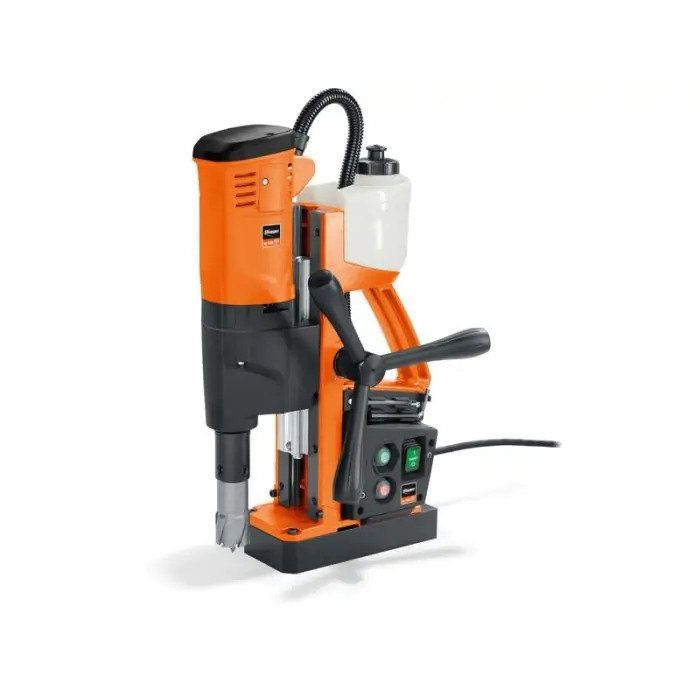

JME HOLEMAKER III

Features

• Extemely wear resistant concept with durable newly designed polyurthane motorhousing for use in industry and manual trades.
• Extemely lightweight drill yet powerful enough for heaviest drilling applications.
• Cost effective drill for running with Carbide cutters which offer longer life, higher cutting rate and capable of cutting harder materials. Also running with standard HSS cutters with great results.
• Optimum power-to-weight ratio.
• Integrated cooling tank.
• Magnet holding power detection below 3/16 in [4] in[mm].
• Pivoting motor cable.
• Higher RPM for optimal use with carbide cutters.
• Side-reversible feed handwheel with hexagonal hub.
• Integrated hexagon socket holder.

Specifications

• Power consumption 1,100 kW
• Power output 510 Watts
• Full load speed 450 rpm
• Twist drill max. dia. 5/8 in
• Mag base, max. drilling depth 2 in
• Carbide annular cutter max. dia. 1-3/8 in
• HSS annular cutters max. dia. 1-3/8 in
• Annular cutter holder 3/4 in Weldon
• Stroke 5-11/16 in
• Total stroke range 10-1/4 in
• Magnetic holding force 2,810 lbs
• Magnetic base dimensions 7-11/16 x 3-9/16 in
• Cable with plug 9 ft
• Weight according to EPTA 25.8 lbs
