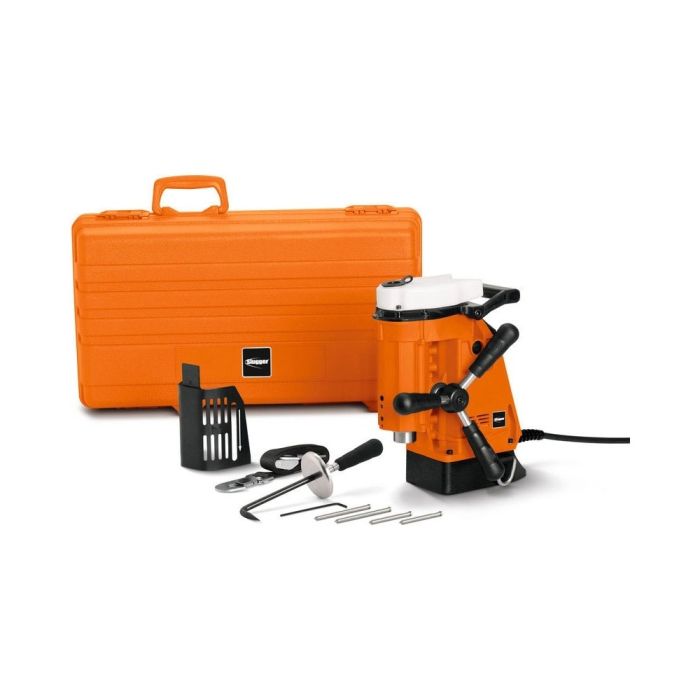

FEIN JHM 1-5/8" CAPACITY MAGFORCE SLUGGER MAGNETIC DRILL PRESS
In stock
Only 1 left
Item Number
72725361127
The Slugger JHM Magforce is a mag base drilling unit for diameters of up to 1 5/8" (40 mm). Designed for installation work, it features a quill feed enclosed in the housing. The motor and jig are cast from a single block.
Features
- Extremely compact with ideal power to weight ratio for work at heights and in confined spaces.
- Hand feed wheel mounts on either side for use in special situations.
- Internal motor cable routing prevents unintended threading or hanging up on the workpiece.
- Internal cooling.
- Solid die-cast aluminum construction.
- Stationary drill motor.
- Quill feed spindle eliminates field maintenance and adjustments and provides positive (mechanical) slug ejection.
Specifications
- Power consumption 1,100 W
- Power output 610 W
- Full load speed 280 rpm
- No load speed 450 rpm
- HSS cutter max. dia. 1-5/8 [40] in[mm]
- Cutter max. drilling depth 2 [50] in[mm]
- Cutter holder 3/4 in straight shank
- Stroke 2-9/16 [65] in[mm]
- Magnetic holding force 2023 [9,000] lbs[N]
- Magnetic base dimensions 6 [152] x 4 [102] in[mm]
- Cable with plug 12.5 [3.8] ft[m]
- Weight according to EPTA 28.88 [13.10] lbs[kg]
| Item Number | 72725361127 |
|---|---|
| Weight | 100.000000 |
