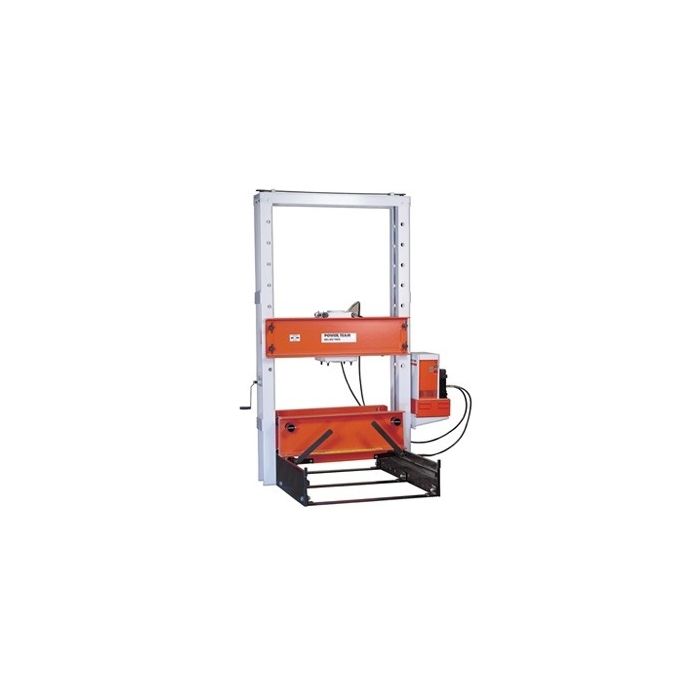

SPX 80 TON ROLL BED PRESS W/PQ1204S 460V 3-PHASE
Pre Order Today
Item Number
RB8013S
The original, patented Roll-Bed® design. Bed rolls out for easy loading and unloading with a crane or other lifting device. Movable work head glides easily side-to-side for full off-center load capacity across width of upper frame. “Daylight” is 50 1/2" x 60" for 80 and 100-ton models; 51 1/4" x 64" on 150 and 200-ton presses. Fast approach of double-acting, 13 1/8" stroke cylinder is provided by PQ1204S “Quiet” electric/hydraulic pump with remote control hand switch. Operator can view work from all sides with fingertip control of cylinder piston travel.
Specifications
- Capacity (tons): 80
- Type of Cylinder Used: Double Acting
- Stroke (in): 13-1/8
- Speed Advanced (in/min): 46
- Speed Pressing (in/min): 7.5
- Type of Pump: Electric
- Valve Pump: 4-way
- Weight (lbs): 2,886
Dimensions (in):
- A: 112-5/8
- B: 64-1/4
- C: 50-1/2
- D: 27
- E: 12 - 60
- F: 14-1/2 - 36
- G: 3
- H: 4- 27-1/4
- J: 8
- K: 36-1/2
- L: 3-3/8
- M: 15
- Floor Space: 64-1/4 x 60-1/2
Features:
- Adjustable lower bed width – For secure balancing and centering of heavy jobs. Loosen adjusting bolts to adjust bed from 4" to more than 27". See dimension “H.”
- Movable work head – For off-center pressing jobs, work head moves on bearings across upper bolster. Presses can be used at full capacity, regardless of where work head is placed.
- Lifting mechanism – Simply turn crank handle to raise or lower upper bolster. Screw mechanism raises or lowers both sides evenly (a heavy duty 1/2" drill motor can replace handle for automatic adjustment). Four locking pins hold bolster in place for pressing.
- Optional heavy-duty straightening fixtures – Make straightening jobs easy and accurate to within .004"! Rollers are ball bearing mounted and handle raises or lowers for easy turning of the work.
| Item Number | RB8013S |
|---|---|
| Weight | 5.000000 |
