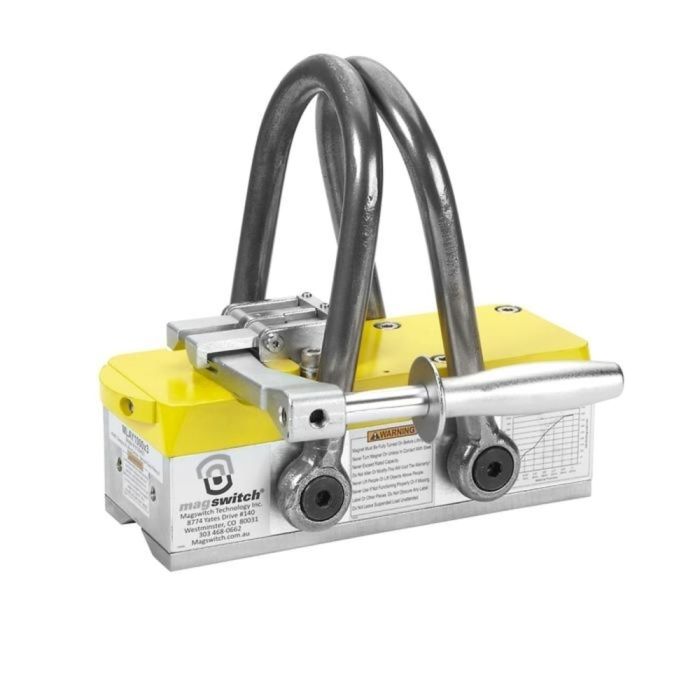

MLAY1000X3 LIFTING MAGNET (1/2 TON)
Pre Order Today
Item Number
8100403
Built for heavy-duty lifting, our magnet technology is powerful without the need for a power source. Safely lock in the on and off position with a 3:1 Safe Working Load of 913 pounds. The dual lift hook offers the stability to lift horizontally and a single hook to lift into a vertical position.
Features
- Magnetic field turns completely on and off mechanically.
- Magnet stays clean.
- Does not use an electrical power source.
- Lock On/Off handle.
- Superior hold force on Thin steel (70mm deep field).
- Compact, lightweight and easy actuation.
- Lifts large flat sheets, beams, pipe.
- Performs well on air gaps such as rust and dirt.
- Customizable pole shoes to fit almost any application.
Specifications
- Max Breakaway: 2738 lbs (1242 kg) on 2'' steel
- 3:1 Safe Working Load: 913 lbs (414.1 kg)
- 2:1 Shear Working Load: 198 lbs (89.8 kg)
- Full Saturation Thickness: 0.75 in (19 mm)
- Minimum Thickness for De-Stack: 0.75 in (19 mm)
- Product Weight: 36.5 lbs (16.5 kg)
- Mounting Thread: M8 x 1.25
- Dimensions: 10.7 x 7.7 x 10.4 in (271.7 x 195.5 x 264.1 mm)
- Magnetic Pole Footprint: 255 mm x 97.6 mm
| Item Number | 8100403 |
|---|---|
| Weight | 30.000000 |
