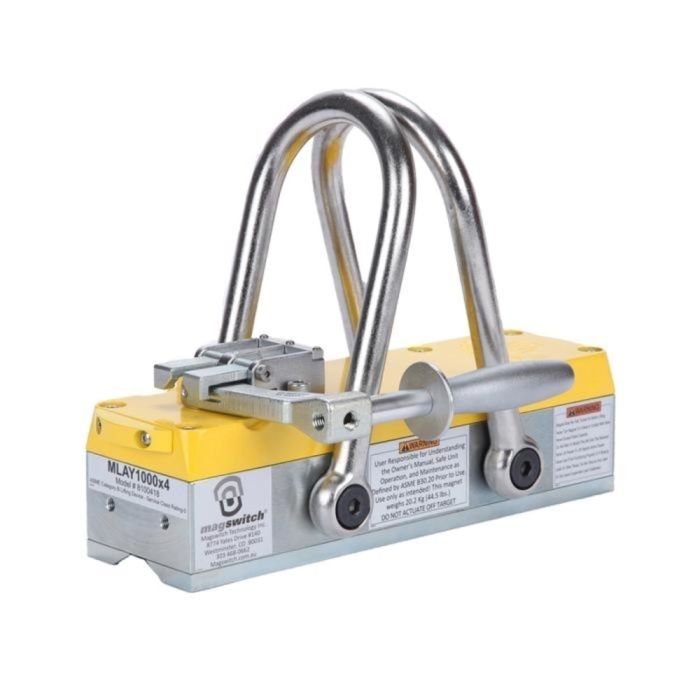

MLAY1000X4 LIFTING MAGNET (3/4 TON)
Pre Order Today
Item Number
8100418
Built for heavy-duty lifting, our magnet technology is powerful without the need for a power source. Safely lock in the on and off position with a 3:1 Safe Working Load of 1215 pounds. The dual lift hook offers the stability to lift horizontally and a single hook to lift into a vertical position.
Features
- Magnetic field turns completely on and off mechanically.
- Does not use an electrical power source.
- Magnet stays clean.
- Lock On/Off handle.
- Superior hold force on thin steel (70 mm deep field).
- Compact, lightweight and easy actuation.
- Lifts large flat sheets, beams, pipe.
- Performs well on air gaps such as rust and dirt.
- Customizable pole shoes to fit almost any application.
Specifications
- Max Breakaway: 3646 lbs / 1653.8 kg on 2'' steel
- 3:1 Safe Working Load: 1215 lbs / 551 kg
- 2:1 Shear Working Load: 284 lbs / 128.8 kg
- Full Saturation Thickness: 0.75 in / 19 mm
- Minimum Thickness for De-Stack: 0.75 in /19 mm
- Product Weight: 45.2 lbs (20.5 kg)
- Mounting Thread: M8x1.25
- Dimensions: 13.8 x 7.7 x 10.3 in (350.5 x 195.5 x 261.6 mm)
- Magnetic Pole Footprint: 336 mm x 97.6 mm
