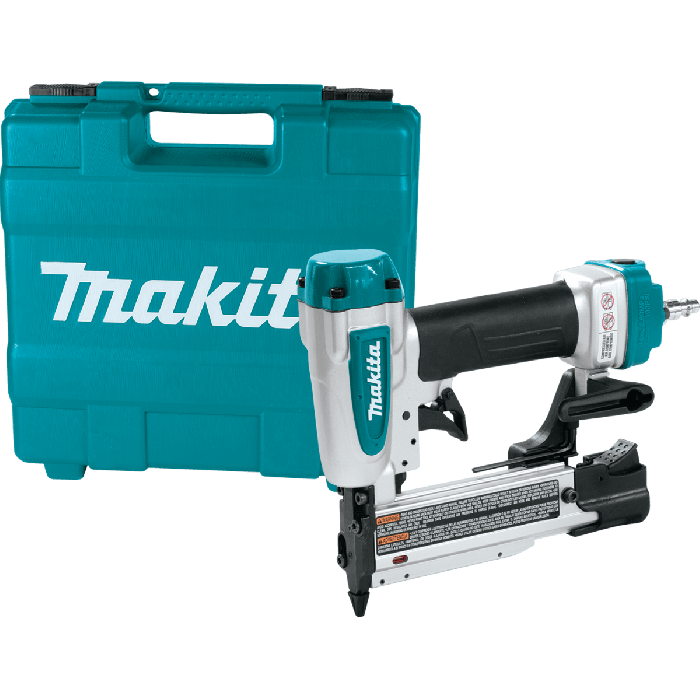

MAKITA 1-3/8" 23 GAUGE LIGHTWEIGHT AIR PIN NAILER

Call for Price
Pre Order Today
Item Number
AF353

The Makita 23 Gauge Pin Nailer (model AF353) offers an array of features and powerful performance in a compact size. The AF353 has a side, drop-in loading magazine that accepts standard 23 ga. headless pins sized 5/8", 11/16", 3/4", 1", 1-3/16", and 1-3/8". The nail lock-out and red window alerts the user when to reload pins as the 2-finger trigger is used for controlled firing. With a compact size and weighing in at only 2 lbs., the AF353 was engineered for all-day professional use ideal for installing moulding, chair rail, tacking trim, glass retainers to doors, cross pinning dowels & joints, cabinets, paneling, glazed bead, craft work, picture frame assembly, window beading, rattan furniture, and a whole host of other woodworking applications. Additional convenience features include a reversible belt hook that allows the tool to remain close-by, a rear exhaust port that directs exhaust air away from the user and work surface, a built-in air duster that provides convenient air flow to clear your workspace, and 2 removable no-mar tips with sightlines for increased pinning accuracy.

Features

  • Powerful motor drives standard headless pins sized 5/8", 11/16", 3/4", 1", 1-3/16" and 1-3/8"
  • Aluminum body, magazine and cylinder for strength and durability; weighs only 2 lbs.
  • Nail lock-out mechanism protects tool and work surface from pin-less blank fires (dry-fires)
  • Side, drop-in loading magazine holds up to 130 nails for maximum efficiency
  • Built-in air duster provides convenient air flow to clear work surface
  • Double, 2-finger trigger for user convenience
  • Rear exhaust port directs exhaust air away from operator and work surface

Specifications

  • Operating Air Pressure (PSI) : 65 - 100
  • Nail Size : 5/8", 11/16", ¾", 1", 1-3/16", 1-3/8" (23 ga.)
  • Maximum Magazine Capacity : 130
  • Dimensions (LxWxH) : 8-3/16" x 2-5/8" x 7-1/2"
  • Inlet Size : 1/4" NPT
  • Minimum Recommended Air Delivery : .8 SCFM @ 90 PSI
More Information
Item Number AF353
Weight 30.000000
Vendor Part Number AF353
