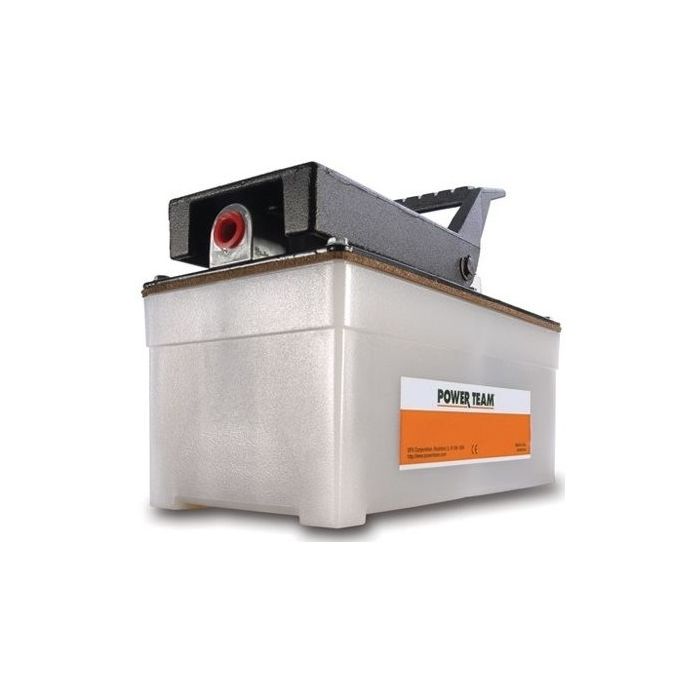

SPX SINGLE-SPEED SINGLE ACTING AIR PUMP 6 CU. IN. / MIN
In stock
Only 2 left
Item Number
PA6
Compact, lightweight and portable, single-speed pump for driving single-acting cylinders.
Features
- Foot-operated air/oil pump compact, lightweight & portable single-speed pumps designed to drive single-acting cylinders
- The power unit of choice for major manufacturers of auto body, frame straighteners and other equipment
- Serviceable pump motor is not a “throw away, providing economical repair
- Permanently vented reservoir cap
- Internal relief valve protects circuit components, air inlet filter protects motor
Specifications
- Pump type: Air-Driven Hydraulic Single Speed Pump
- Typical flow at 10000 psi: 6 in³/min
- For use with: Single-Acting Cylinders
- Outlet port size: 3/8 NPTF
- Reservoir capacity: 0.45 gal
- Reservoir material: High Density Polyethylene
- Reservoir capacity (cubic inches): 105.0 in³
- Sound level: 85 dBA
- Air pressure range: 40 to 120 psi
- Length: 9.50 in
- Usable oil capacity: 98.0 in³
- Width: 5.88 in
- Maximum pressure: 10000 psi
- Height: 7.75 in
- Typical flow at max psi: 6 in³/min
- Weight: 14.00 lb
- Typical flow at 100 psi:465.000 in³/min
| Item Number | PA6 |
|---|---|
| Weight | 50.000000 |
| Vendor Part Number | PA6 |
