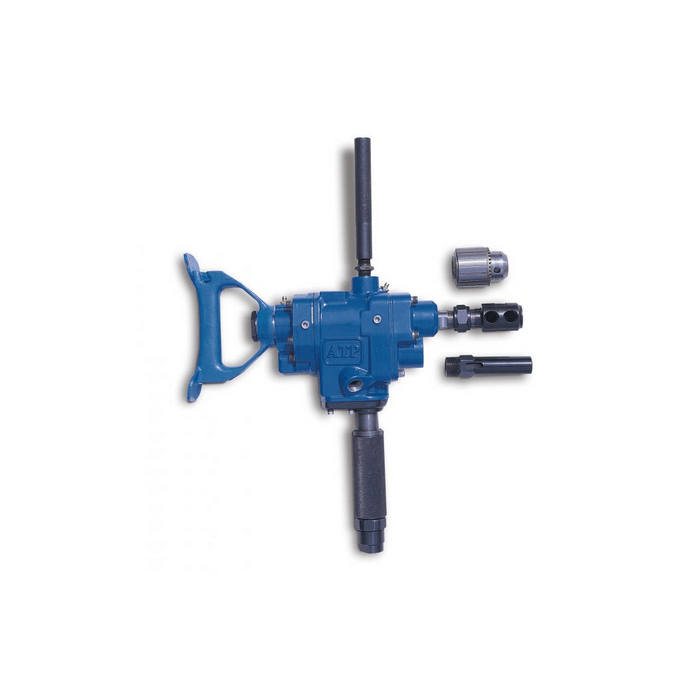

ATP 1/2" CHUCK, ROLL THROTTLE 350RPM LARGE DRILL

Features

• Roll throttle for excellent speed control
• Governor controlled motor maintains speed and power under load
• Internal oil reservoir for reduced downtime
• External grease fitting for ease of lubrication
• Self closing throttle with independent reverse
• Ball bearing support for long life and smooth operation

Specifications

• Free Speed rpm: 350
• Drilling Capacity Steel in: 7/8
• Reaming Capacity Steel in: 5/8
• Reversible: No
• Spindle Attachment in: 0-1/2 Chuck
• Maximum hp: 1.75
• Side to Center Distance in: 1.44
• Height Over Spindle in: 17.25
• Air Inlet NPT in: 1/2
• Hose ID in: 3/4
• Performance Pressure PSIG: 90
• Performance Pressure Bar: 6.2
• Air Consumption cfm: 50
• Air Consumption l/min: 1416
