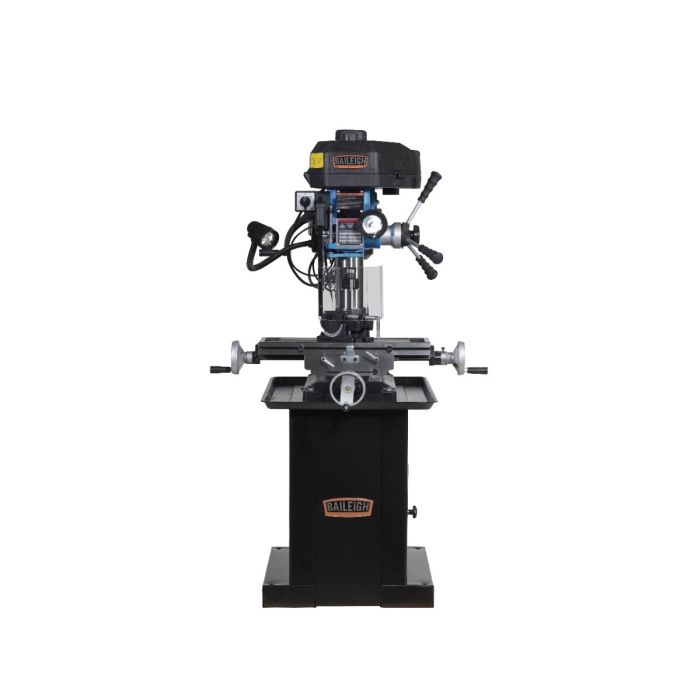

Baileigh VMD-15 15" Mill Drill w/ R-8 Taper

$2,599.00
Pre Order Today
Item Number
BA9-1231787

The Baileigh VMD-15 Vertical Mill Drill is the perfect option when operators need to do some light-duty milling that doesn't require a full-size milling machine but still allows the use of R-8 tooling. The ability to drill and mill with one machine saves time and money. The VMD-15 Vertical Mill Drill is perfect for maintenance departments, machine, welding, job, or even home shops. An optional stand is also available if bench space is at a premium.

Due To Shipping Restrictions

This Item is In-Store Pick-Up Only

Features

  • Efficiency
  • Belt-drive, step pulley system allows for rapid, easy speed changes to work with a variety of materials
  • Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds
  • Drill press style angle vise locks material in place
  • Drill chuck & arbor allow easy changes from drilling to milling
  • 360° head swivel allows milling or drilling of oversized material
  • Articulated LED lamp illuminates your workpiece
  • Performance
  • Single piece, the cast iron column provides stable support for precise milling or drilling reducing deflection
  • Easy-to-read external depth gauge for accurate milling & drilling

Specifications

  • Stock Number BA9-1231787
  • Base Dimensions (In.) 12-1/2 x 19-3/4
  • Column Diameter (In.) 3-5/8
  • Drilling Capacity (In.) 1.5
  • Max Distance Spindle to Table (In.) 14-1/2
  • Model Number VMD-15
  • Motor (HP) 1
  • Number of Spindle Speeds 12
  • Prop 65 Cancer and Reproductive Harm
  • Quill Diameter (In.) 2-7/16
  • Range of Spindle Speeds (RPM) 110 - 2580
  • Spindle Taper (In. x TPI) R8
  • Spindle Travel (In.) 4.75"
  • Swing (In.) 14-1/2
  • T-Slots Number and Size (In.) 4 and 9/16
  • Table Size (L x W) (In.) 7-1/2 x 23
  • Work Table Weight Capacity (Lbs.) 350
More Information
Product Name Baileigh VMD-15 15" Mill Drill w/ R-8 Taper
