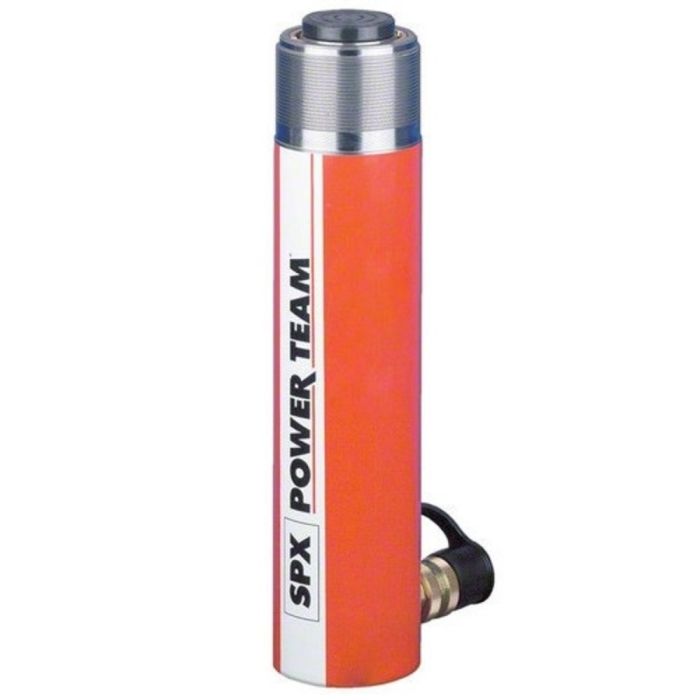

SPX 100 TON 10-1/4" STROKE CYLINDER

Features

• Aluminum bronze bearing reduces wear caused by off-center loads.
• Maximum sized springs speed piston return and increase spring life.
• Solid steel cylinder body for durability.
• Chrome plated piston rod resists wear and corrosion.
• Wide range of accessories available to thread onto piston rod, collar, or onto cylinder base.
• Base mounting holes standard on 5 through 55 ton cylinders; optional on 75 and 100 ton cylinders.
• A 3/8" NPTF female half coupler is standard.

Specifications

• Cylinder Cap tons: 100
• Stroke (in): 10-1/4
• Oil cap (cu. in): 211.5
• Bore Diameter (in): 5-1/8
• Cylinder Effective Area (sq. in): 20.62
• Internal Press at cap (psi): 9,695
• Tons at 10,000 (psi): 103.1
• Weight (lbs): 113
• Retracted Height (in): 16-7/8
• Extended Height (in): 21-1/8
• Outside Diameter (in): 6-1/4
• Collar Thread (in): 6-1/4-12
• Piston Collar Thread Length (in): 2-1/4
• Base to Port (in): 1-5/8
• Piston Rod Diameter (in): 4-1/8
• Rod Protrusion (in): 1/8
