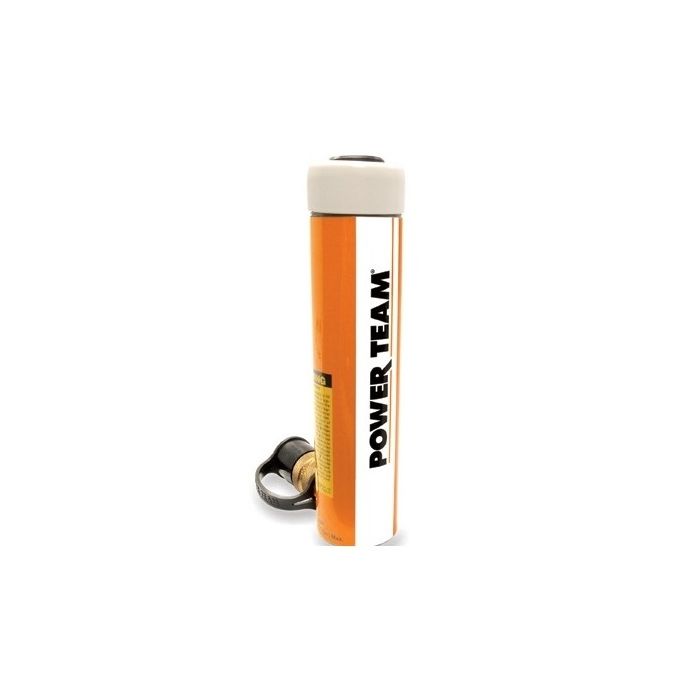

SPX 25 TON 6-1/4" STROKE CYLINDER
In stock
Only 2 left
Item Number
C256C
Aluminum bronze bearing reduces wear caused by off-center loads. Maximum sized springs speed piston return and increase spring life. Wide range of accessories available to thread onto piston rod, collar, or onto cylinder base. Single-Acting, Spring-Return. Rugged and high quality general purpose cylinder used for lifting and pressing.
Specifications
- Cylinder Cap tons: 25
- Stroke (in): 6-1/4
- Oil cap (cu. in): 32.2
- Bore Diameter (in): 2-9/16
- Cylinder Effective Area (sq. in): 5.15
- Internal Press at cap (psi): 9,699
- Tons at 10,000 (psi): 25.8
- Weight (lbs): 21.7
- Retracted Height (in): 10-3/4
- Extended Height (in): 17
- Outside Diameter (in): 3-3/8
- Collar Thread (in): 3-5/16 - 12
- Piston Collar Thread Length (in): 1-15/16
- Base to Port (in): 1
- Piston Rod Diameter (in): 2-1/4
- Piston Int. Thread and Depth (in): 1-1/2 - 16 x 7/8
- Rod Protrusion (in): 3/8
| Item Number | C256C |
|---|---|
| Weight | 28.000000 |
