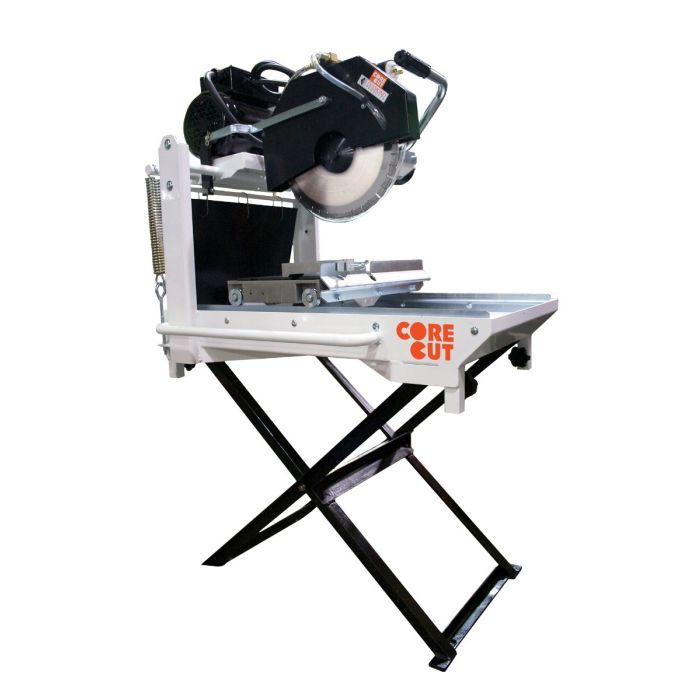

(CC520MXL2E1) 14"MASONARY SAW 115/230V 2 HP

Features

• Stay level blade guard
• Removable cutting head
• Leg kit standard-folding stand optional"
• Side carrying handles
• Replaceable conveyor cart rails
• Includes water pump
• Vulcanized rubber coated material slide cart
• Open throat cutting
• Easy and safe access to depth control lock
• Open back cutting allows longer material to be cut
• Heavy duty frame design help resist damage to saw body
• Reinforced slide rails keep the cart running smoothly
• Simple yet strong design allows easy maintenance
• Sealed drain hole on the bottom of the tray allows quick clean up

Specifications

• Maximum Depth of Cut: 5"
• Blade Shaft Diameter: 7/8"
• Arbor Diameter: 1"
• Blade Shaft Bearings: Flange block ball bearings
• Blade Shaft Drive: 2 belts
• Blade Mounting: Right (electric), Left (gas)
• Blade Raise/Lower: Counterbalanced, spring tensioned head pivots on two 7/8" flange block bearings
• Blade Coolant: Dual spray tubes, pump fed (electric models), pump from tray (gas models)
• Air Filter: 3-stage cyclone (gas models)
• Fuel Capacity: 1 gallon (gas models)
• High Temp Shut-off: Included (electric models)
