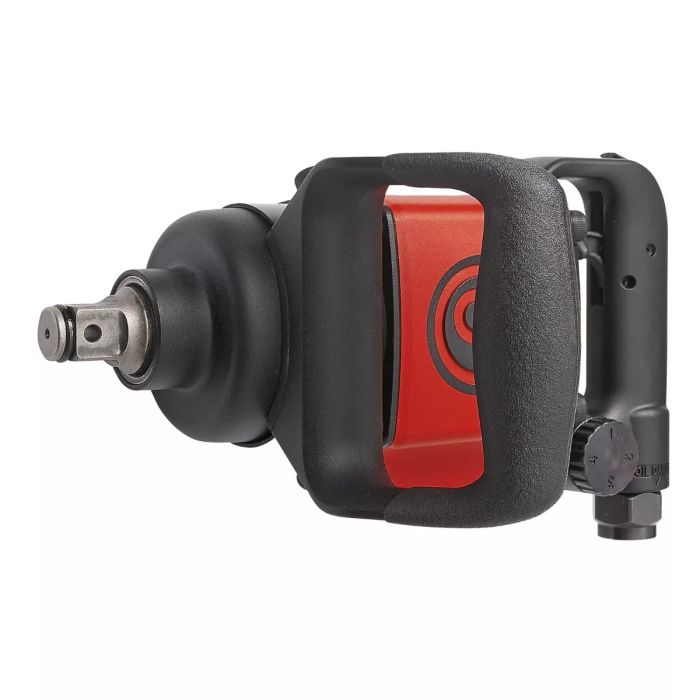

CHICAGO PNEUMATIC 3/4" 1300FT-LB INDUSTRIAL DUTY AIR IMPACT WRENCH
Pre Order Today
Item Number
CP6763-D18D
The Chicago Pneumatic 3/4" 1300Ft-lb Industrial Duty Air Impact Wrench has a free speed of 6600 rpm.
Specifications
- Part number 6151590640
- Actual air consumption 19.3 l/s 41 cfm
- Air inlet thread size 1/2 "
- Blows per minute 730
- Box dimensions 325*190*130 mm 12,8*7,5*5,1 "
- Clutch type Twin hammer
- European Standards EN ISO 11148-6:2013
- Free speed 6600 rpm
- Free speed air consumption 26.3 l/s
- Handle type D-Handle Inside Trigger
- Length 290 mm 11.4 "
- Maximum Torque (reverse) 1760 Nm 1300 ft.lbs
- Min. hose size 13 mm 3/8 "
- Net weight 6.6 kg 14.5 lb
- Over carton 350*210*290 mm 13,8*8,3*11,4 "
- Side to center 41 mm 1.6 "
- Socket retainer Dual (hole+friction)
- Sound Power 109 db(A)
- Sound pressure 98 db(A)
- Square drive 3/4 "
- Vibration 11.4 m/s²
- Vibration ISO ISO-28927-2
- Vibration uncertainty (K) 2.9 m/s²
- Working Torque Range (fwd) 340 - 1450 Nm 250 - 1070 ft.lbs
| Item Number | CP6763-D18D |
|---|---|
| Weight | 30.000000 |
