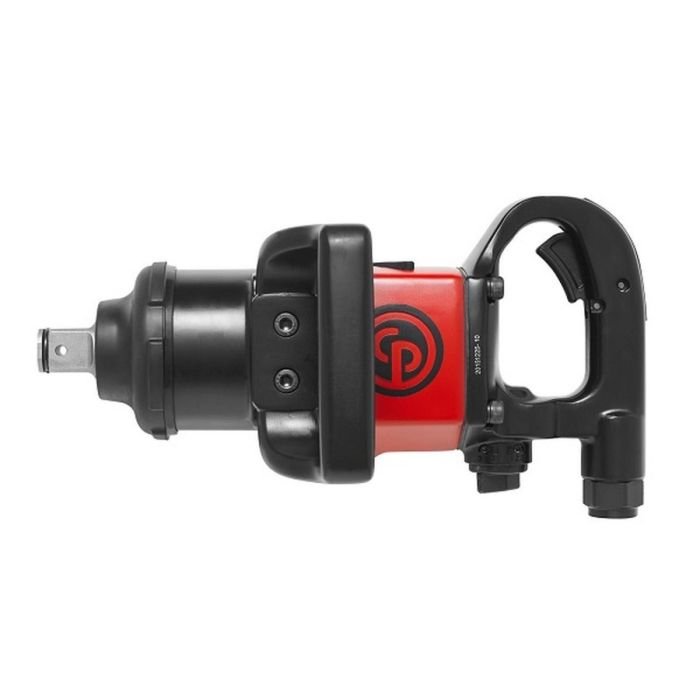

CHICAGO PNEUMATIC 1" 6200RPM SQUARE HEAVY DUTY AIR IMPACT WRENCH
The Chicago Pneumatic CP7783 Impact Wrench delivers smooth operation and extended durability. It is a versatile, compact, lightweight and powerful tool ideal for all maintenance applications and general repairs. This pinless, closed, reinforced rocking dog mechanism has only two main moving parts to ensure optimal power transmission and superior durability. It features four positions for D-handle placement to provide ultimate operator comfort and forward/reverse regulator with 3 power settings in both directions. The D-handle offers a durable and comfortable grip. With 1770 ft. lbs - 2400 Nm of maximum torque in reverse, this impact wrench provides full power, and a working torque range of 413 to 1253 ft./lbs. This product weighs 18.5 lbs, measures 13.7 inches long, and has a 1-inch output drive.
Features
- 1770 ft. lbs / 2400 Nm max torque in reverse for high productivity
- 18.5 lbs. / 8.4 kg for reduced operator fatigue
- Pinless closed reinforced rocking dog mechanism
- Features an adjustable top or down exhaust
- Regulator integrated in forward/reverse button with 3 power settings in both directions
- Top or down exhaust, easy and quick to change
- Four positions for D-handle placement to provide ultimate operator comfort
- Forward/Reverse regulator with 3 power settings in both directions
- Rubber bumper protecting both applications & tool (included)
Specifications
- Length 350 mm 13.7"
- Net weight 8.4 kg 18.5 lb
- Actual air consumption 19 l/s 40.4 cfm
- Air inlet thread size 1/2 "
- Square drive 1"
- Free speed 6200 rpm
- Socket retainer Ring & hole
| Item Number | CP7783 |
|---|---|
| Weight | 30.000000 |
