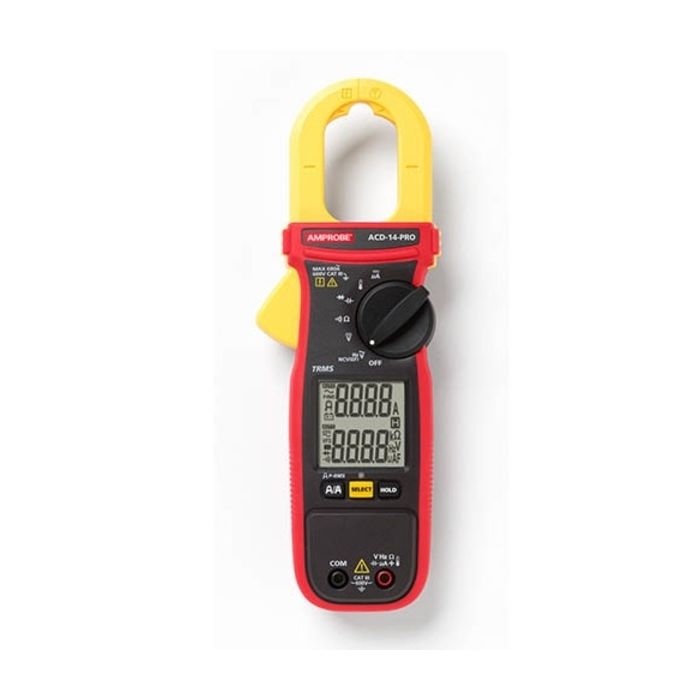

DUAL DISPLAY 600A TRMS CLAMP MULTIMETER
Pre Order Today
Item Number
ACD-14-PRO
This rugged and reliable clamp meter is designed for professional electrician and technician that need a fast responding, feature packed, go-to clamp meter. The ACD-14-PRO offers a complete range of measuring functions for both HVAC and electrical applications. This modern Clamp Meter features a large low-light backlit LCD dual display for dimly lit areas and is capable of simultaneously displaying voltage and amperage – to perform voltage drop tests. The ACD-14-PRO offers TRMS, low pass filter, in-rush current, frequency, resistance, capacitance, temperature, DC micro-Amps, Amp-tip and non-contact voltage detection.
Features
- Large LCD with dual display and low-light backlight
- True-rms for accurate voltage measurements in noisy environments
- Low pass filter for current and voltage measurements on variable frequency drives
- Amp-Tip function for precise low current measurement of small diameter wires down to 0.1 Amp to help with electrical system troubleshooting
- HVAC applications with Temperature, DC Micro-amps and Capacitance
- In-rush current
- Non-contact voltage detection (NCV)
- Audible continuity and diode test
- Data hold
- Auto ranging
- Auto Power Offer
- Low Battery indicator
- Safety Rated CAT III 600 V
Specifications
- AC/DC Voltage (V): 600
- Jaw Opening: 1.18 in (30 mm)
- Frequency (Hz): 5.00 to 999.9
| Item Number | ACD-14-PRO |
|---|---|
| Weight | 5.000000 |
| Vendor Part Number | 4718977 |
